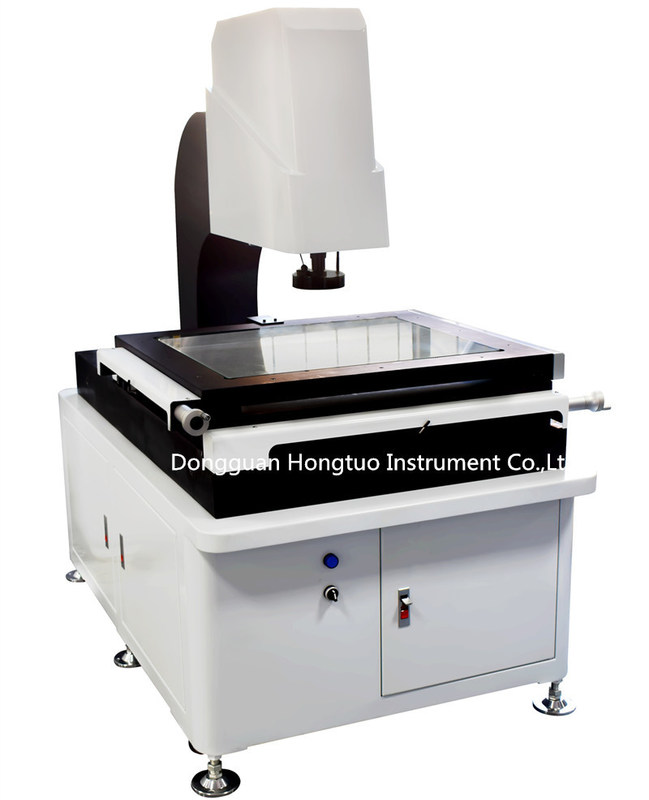

PCB Circuit Board Quadratic Elements Video Measuring Instrument

PCB Circuit Board Quadratic Elements Video Measuring Instrument

It’s used with optical comparator. It can collect the scale coordination in PC keyboard, DRO panel and foot switch. Using the input point, it can be measured the basic graph element and construct advanced PC communication easily. It deduces human error and improves the operators working effectively.

Key Functions:

- Measurement of basic graph: point,line,circle,arc,

rectangle and cirque...and so on

- Axis-skew and coordinate-shift

- Element construction: construct the center,intersection,

midpoint,line,circle and angle,and so on

- Save as DXF and edit in Auto CAD.

- Multi-point measurement.

- Excel and TXT report.

- English operation interface, other language available.

- Zoom in, Zoom out, Move,Print,Select,Cancel select, Delete.

- Tolerance setup.

- Size and angle label.

- Scale calibration

- Q-axis record.

-Update forever and OEM available.

- Scan the sample image save as DXF.file
