Guangdong Hongtuo Instrument Technology Co.,Ltd
 |
| Place of Origin: | China |
| Brand Name: | Dahometer |
| Certification: | ISO CE |
| Model Number: | DH-BR-01 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Standard Export Wooden Case |
| Delivery Time: | 7days |
| Payment Terms: | T/T, Western Union, D/P, D/A |
| Supply Ability: | 1000 Set Per Months |
| Name: | Foam Sponge Drop Ball Tester For Measuring | Ball Diameter:: | 16±0.05 Mm |
|---|---|---|---|
| Display: | LCD Touch Screen Interface | Test Sample Dimension(L*W*H):: | 100 Mm*100 Mm*50mm |
| Drop Height(adjustable):: | 500±0.5%mm(ASTM) | Accuracy: | <0.5% |
| High Light: | ASTM Drop Ball Tester,ISO8307 Drop Ball Tester |
||

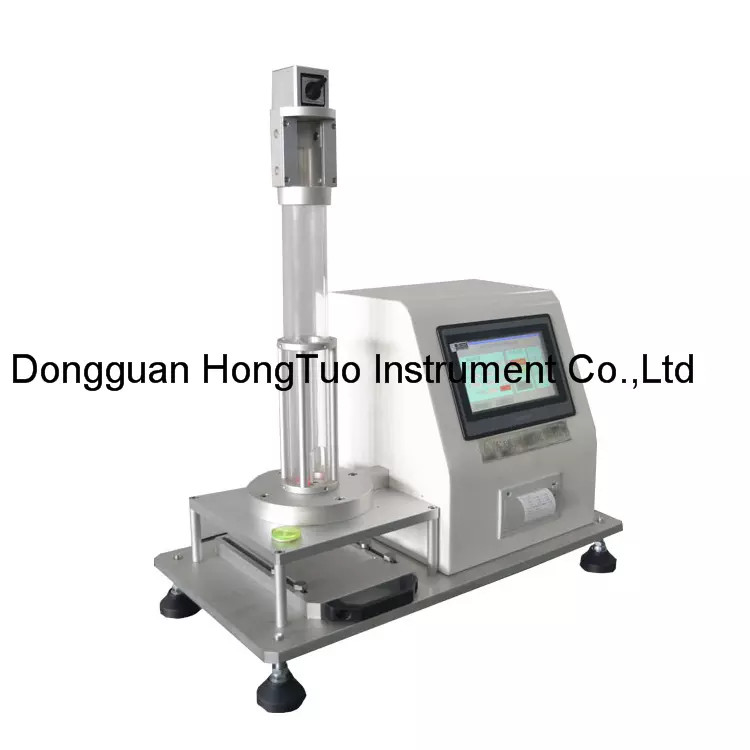

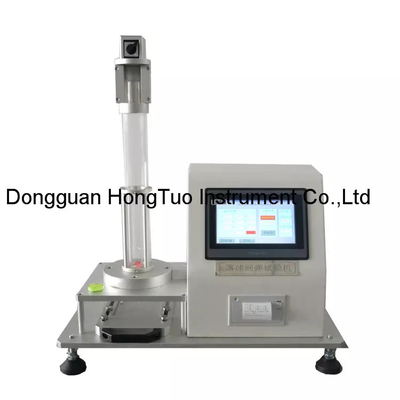

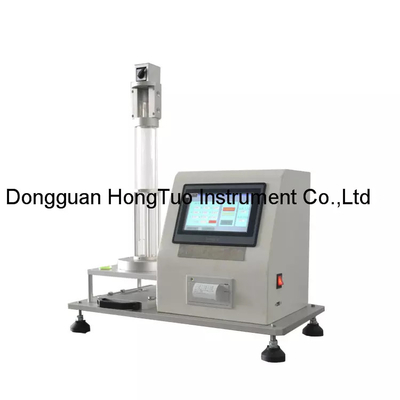

New Automatic ASTM and ISO Foam Sponge Drop Ball Tester For Measuring
GENERL SPECIFICATIONS
Packaging Dimensions: (WxDxH) 680*470*860mm
Power supply source: single-phase, AC22 0V±10%, 50/60Hz (can be appointed)
Gross Weight: 40kg
APPLICATIONS& TEST PURPOSE
It is designed according to ISO 8307 an d ASTM D 3574 test standards . It through specify diameter and mass ball fall on the foam specimen fro m certain height, calculate the percentage between m aximum drop height and rebound height, indicate fo am resilience by spring rate. It uses PLC control, LCD display and with USB port to output test results.
DESIGN STANDARD: ISO8307, AST M D 3574
STANDARD FEATURES
| Drop height(adjustable) | 500±0.5%mm(ASTM) |
| Ball diameter | 16±0.05 mm |
| Accuracy | <0.5% |
| Display | LCD Touch Screen interface |
| Test result | Average rebound height, average sprin g rate |
| Test Sample Dimension | (L×W×H)100 mm×100 mm× 50mm |
| Power | AC220V±10%, 50/60Hz, single phase |
