Touch Screen Foam Polymer Material Reciprocating Compression Testing Machine

Touch Screen Foam Polymer Material Reciprocating Compression Testing Machine

Overview:

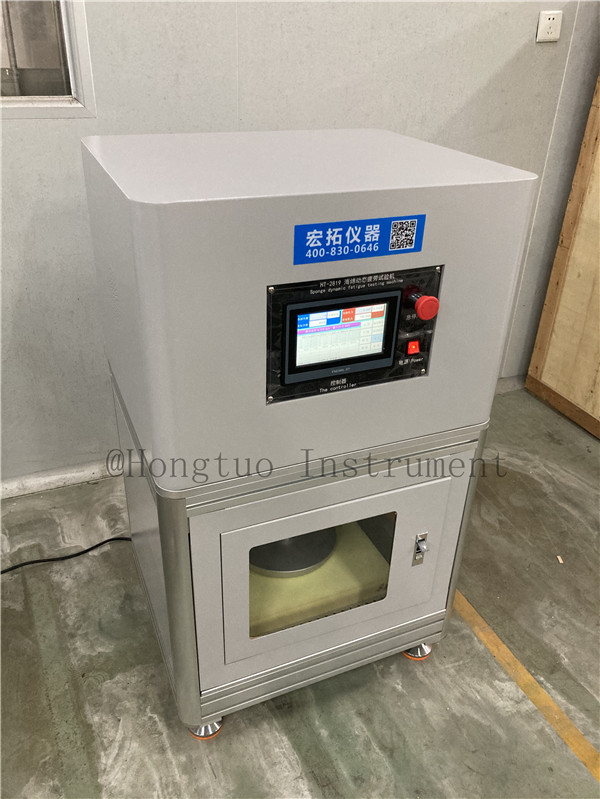

HT-2819 Sponge Dynamic Fatigue Testing Machine is to test foam fatigue by repeating indentation of a test piece, the maximum load reached during each cycle being kept within specified limits. The machine test foam hardness and height before fatigue test and also hardness change and height loss after pounding fatigue test.

Specification:

1. The number of test cycles is 80,000 times, but the test cycle number of this instrument can reach 100,000 times, and it is equipped with an automatic adjustment device. Other specifications meet the QB/T 2819-2006 standard

2. Control method: touch screen control

3. Induction method: precision load cell

4. Test force value range: 0—200kg can be set

5. Unit switching: Kg, N, LB

6. Upper pressure plate: diameter 200mm, bottom rounded corner R1mm

7. Lower platform: 420×420mm, vent diameter 6mm, spacing 20mm

8. Maximum stroke: 200mm

9. Testing speed: 100±20mm/min

10. Range of test times: 1-999999 times, configurable

11. Power source: servo motor

12. Transmission mode: precision ball screw

13. Power supply: single-phase 220V, 50Hz/60Hz

14. Equipment weight: about 160kg
