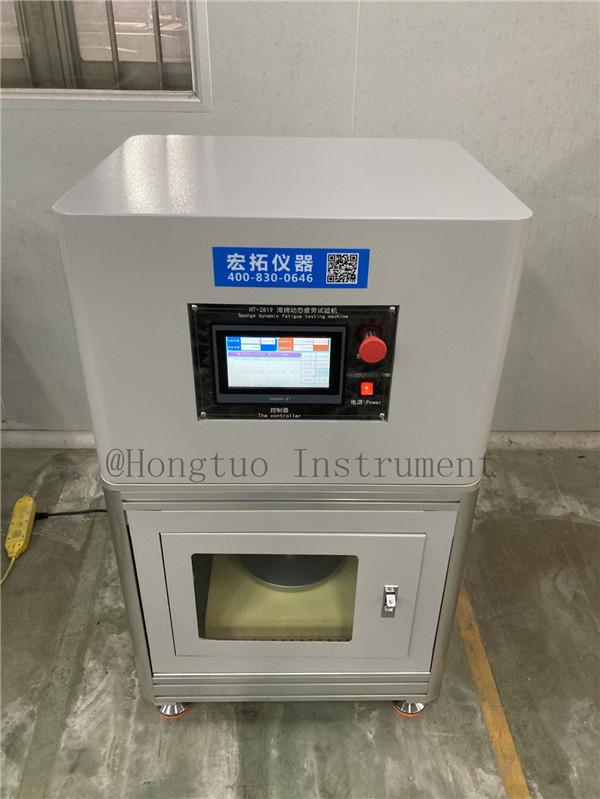

Touch Screen Sponge Dynamic Fatigue Testing Machine Precision

Touch Screen Sponge Dynamic Fatigue Testing Machine Precision

Overview:

Sponge Dynamic Fatigue Testing Machine is mainly used for the fatigue test of sponge. The device has powerful digital display, high precision, large test range, wide application range, convenient operation, high electronic integration, good reliability, and strong retention of keys. This equipment can also be installed on the sponge tensile testing machine to make it a tensile and fatigue tester. It can also be used as a sponge fatigue tester alone.

Specification:

1. The number of test cycles is 80,000 times, but the test cycle number of this instrument can reach 100,000 times, and it is equipped with an automatic adjustment device. Other specifications meet the QB/T 2819-2006 standard

2. Control method: touch screen control

3. Induction method: precision load cell

4. Test force value range: 0—200kg can be set

5. Unit switching: Kg, N, LB

6. Upper pressure plate: diameter 200mm, bottom rounded corner R1mm

7. Lower platform: 420×420mm, vent diameter 6mm, spacing 20mm

8. Maximum stroke: 200mm

9. Testing speed: 100±20mm/min

10. Range of test times: 1-999999 times, configurable

11. Power source: servo motor

12. Transmission mode: precision ball screw

13. Power supply: single-phase 220V, 50Hz/60Hz

14. Equipment weight: about 160kg
