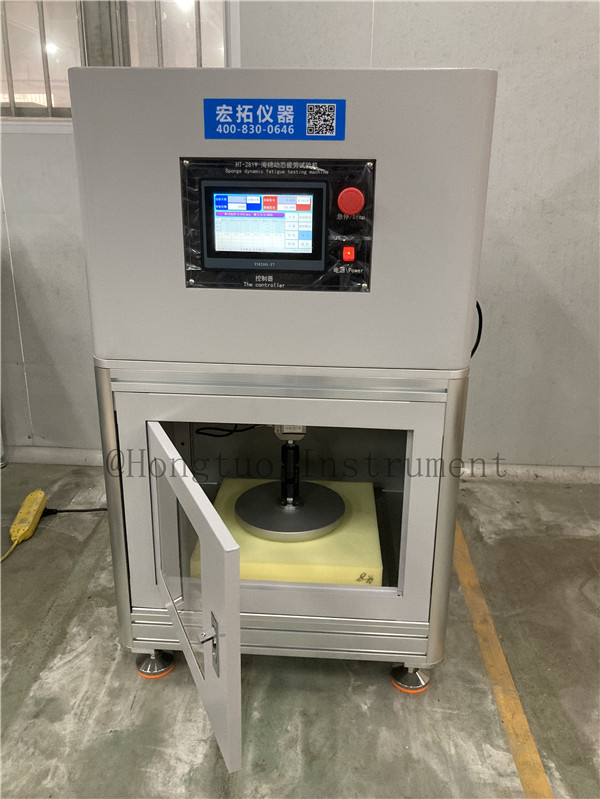

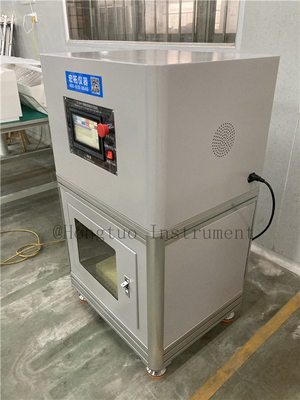

QB/T 2819-200 Sponge Indentation Fatigue Testing Equipment,Sponge Indentation Fatigue Testing Machine For Lab

QB/T 2819-200 Sponge Indentation Fatigue Testing Equipment,Sponge Indentation Fatigue Testing Machine For Lab

  • QB/T 2819-200 Sponge Indentation Fatigue Testing Equipment,Sponge Indentation Fatigue Testing Machine For Lab
  • QB/T 2819-200 Sponge Indentation Fatigue Testing Equipment,Sponge Indentation Fatigue Testing Machine For Lab
  • QB/T 2819-200 Sponge Indentation Fatigue Testing Equipment,Sponge Indentation Fatigue Testing Machine For Lab
  • QB/T 2819-200 Sponge Indentation Fatigue Testing Equipment,Sponge Indentation Fatigue Testing Machine For Lab
QB/T 2819-200 Sponge Indentation Fatigue Testing Equipment,Sponge Indentation Fatigue Testing Machine For Lab
Product Details:
Place of Origin: China
Brand Name: Dahometer
Certification: ISO,SGS
Model Number: HT-2819
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case
Delivery Time: about 7 days
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets per months
Contact Now
Detailed Product Description
Name: QB/T 2819-200 Sponge Indentation Fatigue Testing Equipment,Sponge Indentation Fatigue Testing Machine For Lab Standard: QB/T 2819-2006
Control Method: Touch Screen Control Induction Method: Precision Load Cell
Power Source: Servo Motor Transmission Mode: Precision Ball Screw

QB/T 2819-200 Sponge Indentation Fatigue Testing Equipment,Sponge Indentation Fatigue Testing Machine For Lab



Overview:



The sponge foam fatigue testing machine is mainly used for the reciprocating compression test of foam polymer materials, and the residual deformation rate is measured. From this, we can know the dynamic fatigue characteristics of materials.



Specification:

The number of test cycles is 80,000 times, but the test cycle number of this instrument can reach 100,000 times, and it is equipped with an automatic adjustment device. Other specifications meet the QB/T 2819-2006 standard

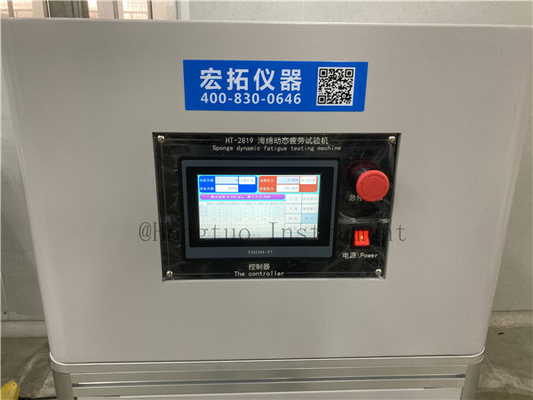

Control method touch screen control
Induction method precision load cell
Test force value range 0—200kg can be set
Unit switching Kg, N, LB
Upper pressure plate: diameter 200mm, bottom rounded corner R1mm
Lower platform 420×420mm, vent diameter 6mm, spacing 20mm
Maximum stroke 200mm
Testing speed 100±20mm/min
Range of test times 1-999999 times, configurable
Power source servo motor
Transmission mode precision ball screw
Power supply single-phase 220V, 50Hz/60Hz
Equipment weight

about 160kg



QB/T 2819-200 Sponge Indentation Fatigue Testing Equipment,Sponge Indentation Fatigue Testing Machine For Lab 0
