Name: Professional Foam Sponge Repeated Compression Life Test Machine
Brand: Dahometer
SKU: DH-IH
Rating: 4.9 (132 reviews)

Home Products Sponge Testing Equipment

Professional Foam Sponge Repeated Compression Life Test Machine

Product Details:

Place of Origin:	China
Brand Name:	Dahometer
Model Number:	DH-IH

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	negotiable
Packaging Details:	Standard Export Wooden Case
Delivery Time:	7days
Payment Terms:	T/T, D/A, Western Union
Supply Ability:	1000 Set Per Months

Contact Now

Detailed Product Description

Name:	Foam Sponge Repeated Compression Life Test Machine	Standard:	ISO-7214, JIS-K6767, K6382
Compression Stroke:	0~50mm	Compression Rate:	60cpm
Weight:	102kg	Power Supply:	1∮AC220V, 5A
High Light:	AC220V Compression Test Machine , 60cpm Compression Test Machine , 1 phase ctm testing machine

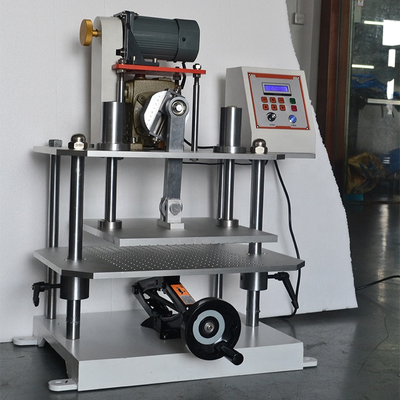

Professional Foam Sponge Repeated Compression Life Test Machine

The Foam Repeated Compression Test Machine apply to test rate of permanent deformation of plastic foam material.After repeatedly compress specimen, check recovery level in stipulated, we can get permanent deformation rate, user can set test times and test machine will automatic stop after reach setting times.

Put the specimen between two compression plates. Compress the specimen to 50% of its original

thickness with the reciprocating compression speed of 60 times per minute till reaching 80000 times .Then the

specimen is put aside for 30 minutes prior to measuring the thickness. The permanent deformation rate can then

be calculated.

Standard: ISO-7214, JIS-K6767, K6382

Technical Parameters:

Compression stroke:	0~50mm
Compression rate	60cpm
Platen spacing	200mm
Test piece size	200 × 200mm
Platen area	30×30cm

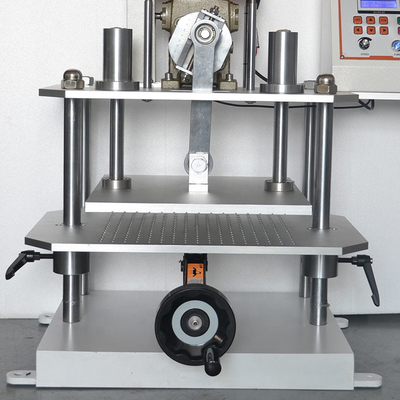

Upper pressure plate:	V-type exhaust groove distance: 19 × 19mm
Lower pressure plate	289 venting holes, hole spacing: 19mm
Motor	1/3HP

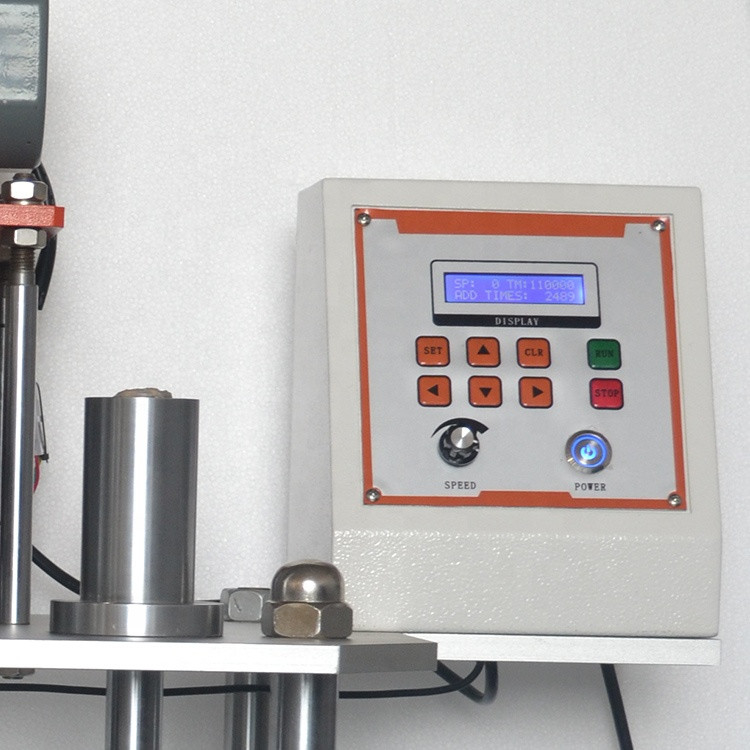

Counter:	LCD, 0~999999
Volume:	60 × 40 × 75cm
Weight:	102kg
Power supply	AC220, 5A
