DH-DJ-5S Laboratory Digital Rotational Viscometer

DH-DJ-5S Laboratory Digital Rotational Viscometer

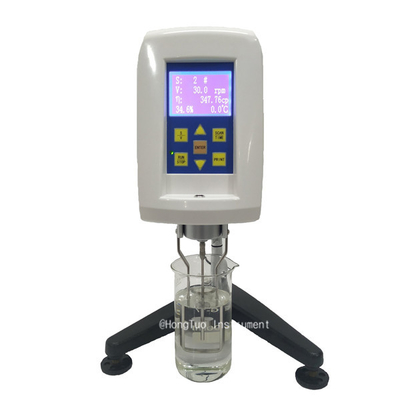

DJ series digital viscometer is the instrument that has been adopt the most advanced newest mirco-computer drive technology,imported stepping motor,and LCD displaying.It has the function of stable rotate speed,high accuracy,easy operation,error alarm and automatic scanning;It can provide the best combination for rotor and rotate speed;Automatically displaying the maximum measuring range for the combination chosen;Screen can directly display the following data:viscosity,rotate speed,percentage torque,rotor model and temperature for the testing objects.

DJ series digital viscometer can measure the absolute viscosity for newtonian liquids and apparent viscosity for non-newtonian liquids.If choose viscometer data processing software,can analyze the simple rheological property for non-newtonian liquids.

Application:
Grease,paint,coating,sizing agent,spinning,food,medicine,cementing compound,cosmetic.,etc.

Features:

• Displaying measuring data directly.no need to do the manual calculation.
• Adopt the advanced newest micro-computer drive technology and imported stepping motor.It has the stable rotate speed.
• Adopt the advanced power source technology.the variation of power frequency will be no effection on the measuring accuracy.
• Integration design,easy operation,convenient and reliable.
• Function of automatic scanning.provide the best combination for rotor and rotate speed.make sure accurate testing result.
• Automatically displaying the maximum measuring range for the combination chosen of rotor and rotate speed.
• Can equip the adaptor ("0" rotor).of which for measuring lowest viscosity.to measure the viscosity at 1-100mpa.s.
• Can choose the temperature probe,real-time measure the temperature of testing objects.
• Has the interface of RS-232 or the USD2.0,can output data.and connect external device.
• Can choose the data processing software.
