Guangdong Hongtuo Instrument Technology Co.,Ltd
 |
| Place of Origin: | Dongguan China |
| Brand Name: | DahoMeter |
| Certification: | ISO,SGS |
| Model Number: | DH-DIN |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard exporting wooden package |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 sets per mont |
| Name: | Lab DIN Abrasion Test DIN-53516 Rubber Abrasion Testing 5N 10N | Standards: | DIN,ISO |
|---|---|---|---|
| Application: | Rubber, Tires,conveyor Belts,shoe Soles | Roller Diameter: | φ150mm |
| Roller Length: | 460mm | Thickness: | 6~15 Mm |

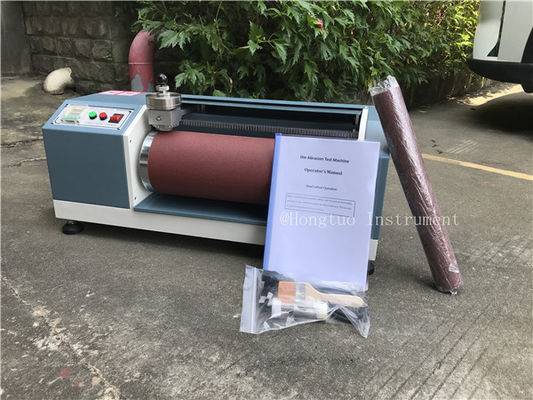

Lab DIN Abrasion Test DIN-53516 Rubber Abrasion Testing 5N 10N
The Din Abrasion Tester is primarily useful to determine the abrastion resistance of vulcanized rubber. This is against abrasive forces using a cylindrical type rotary drum. It may also be useful to determine the resistance to abrasion of other types of materials.
Main Functions:
Din Abrasion Tester is a high efficiency, good reproducibility and easy to operate, applied to test the abrasive nature of material, as such elastic material, rubber, tires, convey belt, transmit belt, sole, synthetic leather, leather and others.
Standards:
DIN-53516,ISO-4649,GB/T9867-88
Applicable Industry:
Din Abrasion Tester applied to test leather performance in shoes, clothing, luggage handbag industry, research laboratories; commodity inspection, arbitration and technical supervision departments.
Specifications:
| Roller diameter | φ150mm |
| Roller length | 460mm |
| Rotate speed | 40rpm |
| Abrasion stroke | 40mm(20mm) |
| Abrasion speed | 0.32m/sec |
| Dip angle | 3° |
| Specimen diameter | φ16 mm |
| Thickness | 6~15 mm |
| Testing load | 5N,10N |
| Clamp horizontal displacement | 4.2mm/roll each lap |
| Standard accessoriesone set of sampler,two pieces of abrasive paper(VSM60#,41*47.6CM),three pieces of standard gel(φ16*8mm),one piece of power cord. | |
Contact Person: Mrs. Julie Zhong
Tel: 86-13267004347
Fax: 86-769-2318-1253
