Place of Origin: | China |
Brand Name: | Dahometer |
Certification: | ISO,SGS |
Model Number: | DH-RCA |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Standard export wooden case |
Delivery Time: | about 7 days |
Payment Terms: | D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 1000 sets per months |
Name: | Automatic RCA Abrasion Wear Tester RCA Abrasion Resistance Test For Coating Industries | Standards:: | ASTM F2357-04 |
---|---|---|---|
Features:: | Easy Set-up And Operation | Surface Meter: | One |
Tools: | One Group | Test Load: | 55g, 175g, 275g Each One |

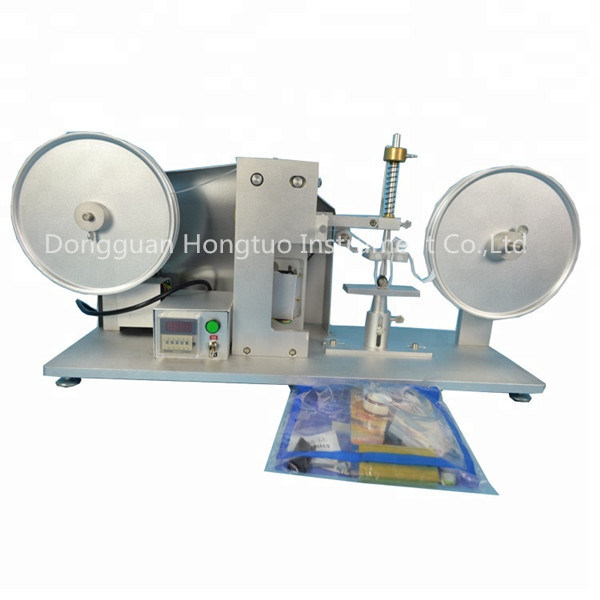

Automatic RCA Abrasion Wear Tester RCA Abrasion Resistance Test For Coating Industries
Application:
The RCA Abrasion Wear Tester is used to test surfaces for resistance to abrasion and wear. Typically used on painted or plated organic finishes, foil, and inked key pad lettering.
This tester is widely used as a standard for many silicone key pad and membrane switch manufacturers. This abrasion tester is used as a standard to the auto, appliance, cell phone,plastics, and coating industries. It uses an inexpensive roll of throw away abrasion paper. All build-up error is eliminated and consistent readings are easily obtained.
Standards:
ASTM F2357-04: Standard Test Method for Determining the Abrasion Resistance of Inks and Coatings on Membrane Switches Using the Norman Tool RCA Abrasion tester.
Features:
Specification:
Surface meter | One |
Tools | One group |
Test Load | 55g, 175g, 275g Each one |
Dust Cover | One |
Magnifier | One |
Pan-use Fixer | One |
O-Ring | Three |
Paper Tape | One Roll |
counter range | Setting |
Dimensions (tester main unit) | 80*38*38cm(H*D*W) |
Weight (tester main unit) | 30KG |
Power | 220V, 5A |
Contact Person: Mrs. Julie Zhong
Tel: 86-13267004347
Fax: 86-769-2318-1253
