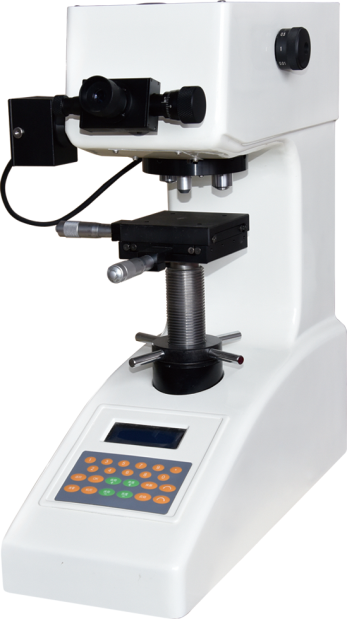

Automatic Turret Vickers Hardness Tester for Material Testing

Main features: Friction-free spindle, high test force accuracy; high-precision optical measuring system, precise coordinate test bench; automatic test process, simple operation, the position switch of the observation-test-measurement of the hardness tester is completed by the automatic turret, no human operation Error; printer prints hardness test results; optional CCD camera device and image processing system; optional Knoop indenter for Knoop hardness test; accuracy conforms to GB/T4340.2 ISO 6507-2 and American ASTM E384.

Application range:Nitriding layer, ceramics, steel, non-ferrous metals; sheet, metal sheet, electroplating layer, micro test piece; depth measurement of carbide layer, decarburization layer and quench hardening layer; suitable for parallel planes, micro parts and ultra-thin Precision Vickers measurement of parts.

Main technical specifications:

Measuring range: 5-3000HV

Test force: 0.09807, 0.2454, 0.4904, 0.9807, 1.961, 2.942, 4.904, 9.807N

(10,25,50,100,200,300,500,1000kgf)

Measurement system magnification: 400x, 100x

Minimum detection unit: 0.5μm

Maximum allowable height of sample: 90mm

Distance from center of indenter to machine wall: 95mm

Power supply: AC220V, 50/60Hz

Dimensions: 340*160*378mm

Weight: about 40kg

Optional configuration: Knoop pressure head; CCD image processing system
