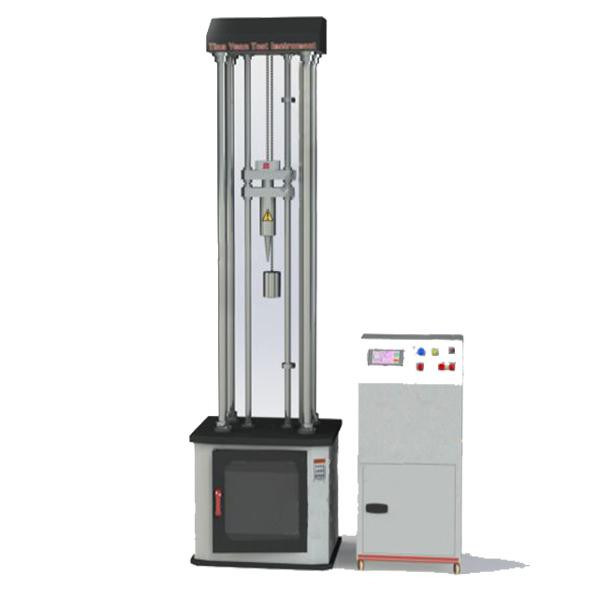

Automatical Plastic Testing Machine / Pipe Drop Weight Impact Test Equipment

Automatical Plastic Testing Machine / Pipe Drop Weight Impact Test Equipment

Product Details:

Place of Origin: Dongguan China
Brand Name: DahoMeter
Certification: ISO,SGS
Model Number: HT-14152

Payment & Shipping Terms:

Minimum Order Quantity: one set
Price: negotiable
Packaging Details: standard exporting wooden package
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month
Contact Now
Detailed Product Description
Product Name: Drop Hammer Impact Tester Maximum impact pipe diameter: Ø400
Maximum impact energy: 300J(can Be Ordered) Testing Before Delivery: Yes
After-sale Customer Service: Yes OEM: Yes







Product introduction:





Drop Weight Impact Tester for Plastic Pipes , Drop Hammer Impact Testing Machine / Instrument / Equipment / Apparatus





Pipe impact tester is designed according to the GB11548-89 /ISO 3127 and other standard, and

fit for the impact testing of plastic and pipe, panels and relative product to measure the resistance to the external impact. The Falling weight impact tester/ drop weight impact testing machine/ falling hammer impact tester is suitable for the impact testing of materials like thermoplastics

pipes, pipe fittings, rigid plastics plates, all kinds of metal accessories, plastics, building rigid materials, and rock and so on.



Product standard:



1.The working table can be adjusted, which has the function of automatically returning to zero position and automatically go up and down.

2.It has the anti secondary impact device, which can prevent the hammer’ secondary impact by sample elastic force after the first impact.

3.The lifting mechanism uses the induction brakes and chain transmission, which make lifting steady and reliable.

4.It use the impact PLC as the control element to control the height of lifting hammer, and automatically measure the height of the hammer head with accurate position.

5.The device can automatically locate, zero, lift hammer, grasp hammer after impact. The high standard of automatization makes it easy to operate.

6.It uses the polished rod as the guiding device, with little resistance when hammer falls.

7.It can add safety protection device to ensure the operation safety.





Technical parameters:



Article No.

TY8008-A

TY8008-B

TY8008-C

TY8008-D

Maximum impact energy

300J(can be ordered)

Maximum impact height

2000mm(can be ordered)

Maximum impact pipe diameter

Ø400

Ø630

Ø1200

Ø1600

Hammer head radius

D25(SR50)

D90(SR50)
