Guangdong Hongtuo Instrument Technology Co.,Ltd
 |
| Place of Origin: | China |
| Brand Name: | Dahometer |
| Certification: | ISO CE |
| Model Number: | DH-FC |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 7days |
| Payment Terms: | T/T, D/A, Western Union |
| Supply Ability: | 1000 Set Per Months |
| Name: | ASTM D1894 Friction Tester Paper Cof Tester Lab Cof Testing Machine | Farmar Weight(g): | 200±2 G |
|---|---|---|---|
| Slider Moving Speed(mm/min): | 100±10 | Test Force Accuracy(N): | ±0.02 |
| Power Supply(AC): | 220V, 50Hz | Dimensions (width X Length X Height): | 300x400x180mm |

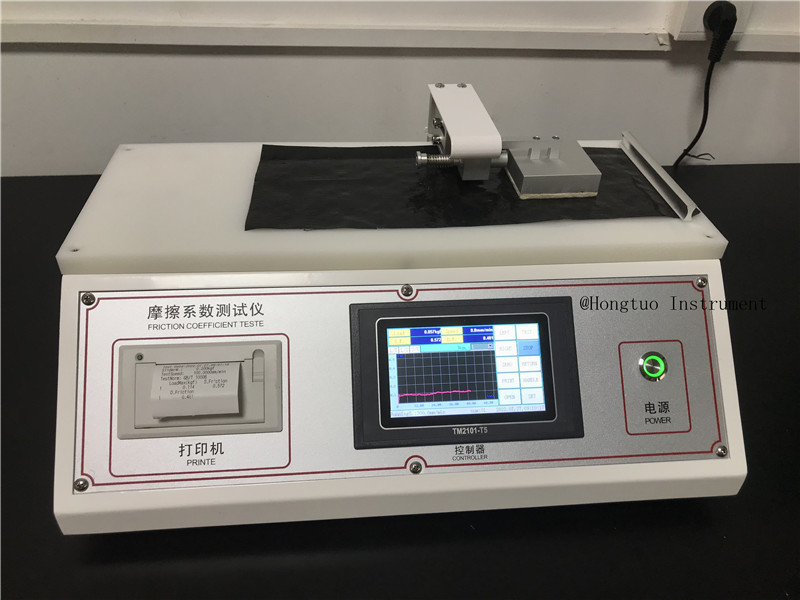

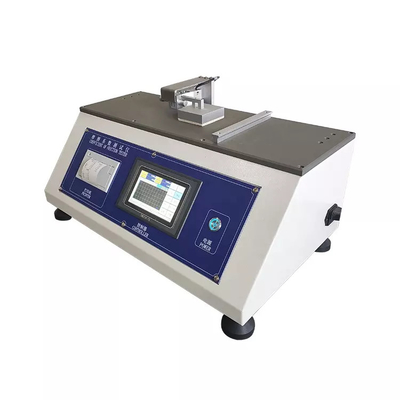

ASTM D1894 Friction Tester Paper Cof Tester Lab Cof Testing Machine
Application:
The principle is to lay the two test surfaces flat together, under a certain contact pressure, move the two surfaces relative to each other, and record the required force.
Specification:
| Serial No. | Project Name | Technical Specification | Remark | |
| 1 | Farmar weight(g) | 200±2 g | ||
| 2 | Slider moving speed(mm/min) | 100±10 | ||
| 3 | Test force accuracy(N) | ±0.02 | ||
| 4 | Power supply(AC) | 220V, 50Hz | ||
|
5 |
Maximum size of specimen(mm) | Upper sample | 63*63 | |
| Lower sample | 80*200 | |||
| 6 | Dimensions (width x length x height)(mm) | 300x400x180 | ||
| 7 | Weight(kg) | 10 | ||
