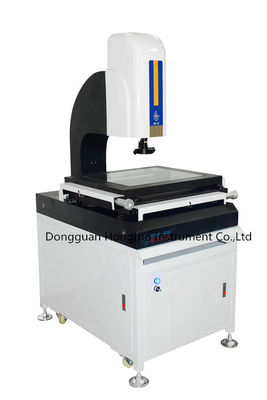

Hand Control Optical Measuring Machine / Video Measurement System For Industrial Inspection

Hand Control Optical Measuring Machine / Video Measurement System For Industrial Inspection

  • Hand Control Optical Measuring Machine /  Video Measurement System For Industrial Inspection
  • Hand Control Optical Measuring Machine /  Video Measurement System For Industrial Inspection
Hand Control Optical Measuring Machine /  Video Measurement System For Industrial Inspection
Product Details:
Place of Origin: Dongguan China
Brand Name: DahoMeter
Certification: ISO,SGS
Model Number: DH-5040F
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: negotiable
Packaging Details: standard exporting wooden package
Delivery Time: 5 to 8 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month
Contact Now
Detailed Product Description
Metal Table’s Size(mm): 700*600 Glass Table’s Size(mm): 530*430
X/Y Axis Travel(mm): 500*400 Weight(kg): 500kg
After-sale Customer Service: Yes Testing Before Delivery: Yes
Highlight:

optical measurement equipment

,

optical measuring instruments

Optical Video Measurement Systems for Industrial Inspection




Machine Specification



Model DH-5040F
Glass table Size 530*430mm
Working travel X.Y 500*400mm
Z-axis travel lift(mm) 200 focus
X.Y.Z-axis digital display resolution 0.5um
X.Y axis value error ≤(3+L/200)L is the measured length,unit mm)
Weight(kg) 500
Dimession 850*1050*1200
Three axis velocity Hand control
Three axis positioning accuracy 0.001mm
Camare Sony color 1/3″CCD camera
Zoom coaxial optical zoom lens with a zoom lens (2 select one)
Zoom magnification 0.7-4.5X
Video total magnification 30-230X
Objector field 11.1-1.7mm
Power consumption 100W
Power AC 220V/AC 110V
1Xtube(option) 0.5Xtube(option) Working distance
0.7-4.5X 0.7-4.5X
Video magnification Material side field(mm) Video magnification Material side field(mm)
11.8X-74X 22-3.4 5.9X-37X 44-6.8 175
23.5X-148X 11.1-1.7X 11.8X-74X 22-3.4 92
47X-296X 5.5-0.9 23.5X-148X 11.1-1.7 36



Machine features:



1. Double closed-loop motion control, motor in high-speed movement with precise positioning performance.
2. Using the embedded modules developed to control motor, increasing motor speed accordingly, but also to simplify the instrument and the PC-interface, PC machines and instruments through the USB line and S-Video cable.
3. It is coupled with the company's self-developed CNC measurement software to achieve rapid detection of large quantities of work pieces at the same time with SPC data analysis capabilities in order to achieve a one-time complete the whole measurement.
4. Surface light source formed by an independent group of 24, each group are constant current source driver and 200-step continuous variable.
5. With marble platform, high stability.
