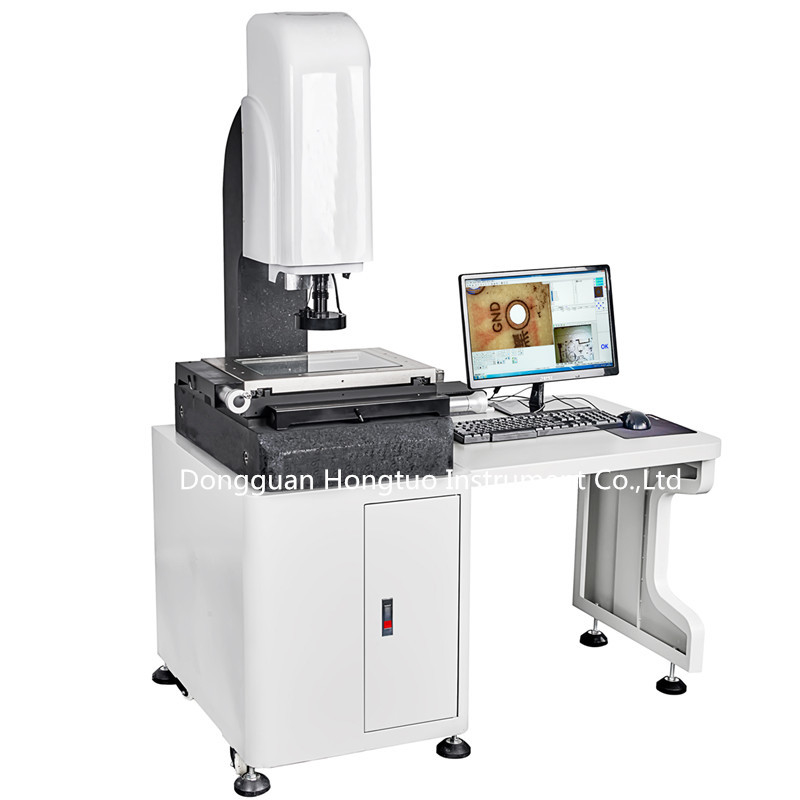

Manual Image Measuring Machine with Excel,DXF,Word and CAD Report
Introduction:
Optical Coordinate Measuring Machine / Image Measuring Machine adopt precision multi-magnification, ultra low-distortion and high resolution telecentric zoom lens that developed by our company, equipping with DSP 1/2” CCD multicolor video system that our company especially designed for optical measure, so that the surface veins of workpiece can be displayed very clearly and distinctly, the hiberarchy of profile is distinguishable, and can be precisely enlarged 20~125 times for precision measure.
Structure and composition:
Image measuring instrument is a kind of high-resolution CCD color camera, continuous zoom lens, color displays, video cross line generator, precision optical ruler, multi-function data processor, 2D data measurement software and high-precision table structures precision optical image measuring instrument.
Specification:
| Hongtuo image measuring instrument | ||||||||
| Model | Range | External size | Weight(KG) | Capacity(KG) | ||||
| DH-2010F | 200*100*200mm | 500*700*1100mm | 170 | 20 | ||||
| Accuracy | XY Axis | Z Axis | ||||||
| 3um+L/200 | ||||||||
L,the measured length | ||||||||
| Speed | XY Axis | Z Axis | ||||||
| Hand | Hand | |||||||
| Operating environment | Temperature:20℃±2℃ Temperature variation:<2℃/hr Humidity:50-60% | |||||||
| Vibration:<0.002mm/s,<15HZ | ||||||||
| Power:220V,50HZ,10A | ||||||||
Configuration list | ||||||||
| Number | Item | Description | Technical specification | |||||
| 1 |
Machine body | Host | Video measuring system | |||||
| 2 | Structure | 00 Leveljinan marble | ||||||
| 3 | Ruler | XY axis 0.5um resolution | ||||||
| 4 | Guide | V style Cross guide | ||||||
| 5 | Rocker | XYZ 3 axis rocker ,bold is not easy to deform | ||||||
| 6 |
Optical system | CCD | 1/3” CCD color camera | |||||
| 7 | Lens | Zoom lens | ||||||
| 8 | Multiplying power | Optical magnification 0.7-4.5X Video magnification 30-230x | ||||||
| 9 | Surface light | 3 rings 8 octants,LED cold lighting | ||||||
| 10 | Profile light | LED cold lighting | ||||||
| 11 | Software system | Measuring software | Independent made system | |||||
| 12 | Electronic control system | Hongtuo control system | Independent reaching and developing | |||||
| 13 |
Accessories | Computer | Industrial computer or brand computer | |||||
| 14 | Worktable | Specially made worktable | ||||||
| 15 | Certification | Qualified by Hongtuo | ||||||
