Guangdong Hongtuo Instrument Technology Co.,Ltd
 |
| Place of Origin: | China |
| Brand Name: | Dahometer |
| Certification: | ISO |
| Model Number: | DH-3020F |
| Delivery Time: | about 7 days |
|---|---|
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets per months |
| Name: | Manual Image Of Measuring Tools Lab Video Measuring Machine | Metal Table’s Size(mm): | 450*350 |
|---|---|---|---|
| Glass Table’s Size(mm): | 330*230 | X/Y Axis Travel(mm): | 300*200 |
| Drive Type: | X/Y Axis Rod Drive,Z Axis Optical Axis Drive | Weight(kg): | 260 |

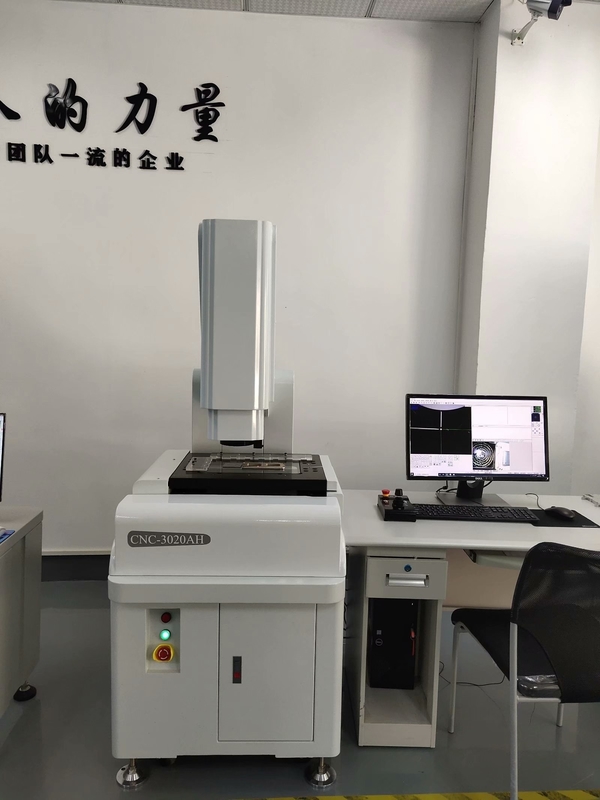

Manual Image Of Measuring Tools Lab Video Measuring Machine
Product Features:
1.High precision and high strength machine:00 marble base / upright column / workable,high precision and good stability.
2.XYZ three axis imported precision V type guide rail / imported optic axis drive system.long service life.good stability.
Specification:
| Model | DH-2010F | DH-3020F | DH-4030F | DH-5040F | |
| Worktable | Metal table’s size(mm) | 350*220 | 450*350 | 550*450 | 700*600 |
| Glass table’s size(mm) | 230*130 | 330*230 | 430*330 | 530*430 | |
| X/Y axis travel(mm) | 200*100 | 300*200 | 400*300 | 500*400 | |
| Z axis travel | Effective space is 245mm,focusing stroke is 200mm,and working distance is 95mm | ||||
| Drive type | X/Y axis rod drive,Z axis optical axis drive | ||||
| Weight(kg) | 170 | 260 | 300 | 500 | |
| Dimension(L)*(W)*(H) | 500*700*1100 | 600*750*1100 | 700*900*1150 | 850*1050*1200 | |
| Measuring servo drive system | Optical scale resolution:X/Y/Z axis 0.0005mm(0.5um) | ||||
| Measuring accuracy:≤3um + L/200 repeatability accuracy:≤3um+L/200(L be regarded as measured length, units: mm) | |||||
| Versatile data processor can measures points,lines,loops,circles,angles.etc. | |||||
| Image System (Standard Accessories) |
Camera :SONY1 / 3" Color CCD Camera | ||||
| Lens magnification :0.7~4.5X WD:95mm | |||||
| Can match 0.5x objective lens,total magnification:15-115x | |||||
| Can match 2x objective lens,total magnification:60-460x | |||||
| LIght system | Surface light and projection light,cold light,long life,brightness adjustable,Surface light and transmission light are used LED,Power:220/110V(AC),50HZ 30W | ||||
