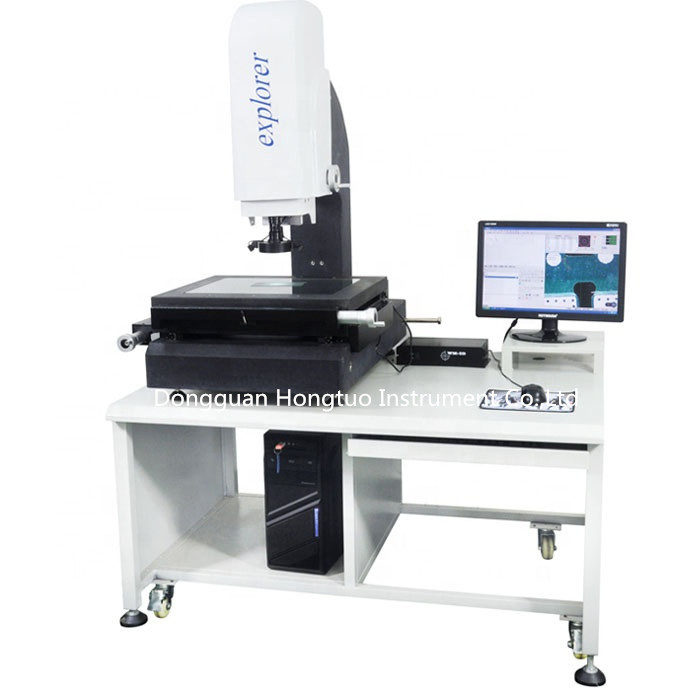

Manual Coordinate Measuring Machine Video Measuring Instrument

Manual Coordinate Measuring Machine Video Measuring Instrument

  • Manual Coordinate Measuring Machine Video Measuring Instrument
Manual Coordinate Measuring Machine Video Measuring Instrument
Product Details:
Place of Origin: China
Brand Name: Dahometer
Certification: ISO
Model Number: DH-4030F
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case
Delivery Time: about 7 days
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sets per months
Contact Now
Detailed Product Description
Name: Manual Coordinate Measuring Machine Video Measuring Instrument Metal Table’s Size(mm): 550*450
Glass Table’s Size(mm): 430*330 X/Y Axis Travel(mm): 400*300
Packing: Wooden Case Port: Shenzhen Or Guangzhou

Manual Coordinate Measuring Machine Video Measuring Instrument





Product Features:





1.High precision grating ruler 0.5um



2.WM continuous zoom optical lens,different frames,different magnification,without zoom correction.





Specification:



Model DH-2010F DH-3020F DH-4030F DH-5040F
Worktable Metal table’s size(mm) 350*220 450*350 550*450 700*600
Glass table’s size(mm) 230*130 330*230 430*330 530*430
X/Y axis travel(mm) 200*100 300*200 400*300 500*400
Z axis travel Effective space is 245mm,focusing stroke is 200mm,and working distance is 95mm
Drive type X/Y axis rod drive,Z axis optical axis drive
Weight(kg) 170 260 300 500
Dimension(L)*(W)*(H) 500*700*1100 600*750*1100 700*900*1150 850*1050*1200
Measuring servo drive system Optical scale resolution:X/Y/Z axis 0.0005mm(0.5um)
Measuring accuracy:≤3um + L/200 repeatability accuracy:≤3um+L/200(L be regarded as measured length, units: mm)
Versatile data processor can measures points,lines,loops,circles,angles.etc.
Image System
(Standard Accessories)
Camera :SONY1 / 3" Color CCD Camera
Lens magnification :0.7~4.5X WD:95mm
Can match 0.5x objective lens,total magnification:15-115x
Can match 2x objective lens,total magnification:60-460x
LIght system Surface light and projection light,cold light,long life,brightness adjustable,Surface light and transmission light are used LED,Power:220/110V(AC),50HZ 30W
