Guangdong Hongtuo Instrument Technology Co.,Ltd
 |
| Place of Origin: | China |
| Brand Name: | Hontotest |
| Certification: | ISO，GB/T，JB/T |
| Model Number: | DX-6600 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD12,320.00 |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | about 3 days |
| Payment Terms: | D/P,T/T, D/A, L/C |
| Supply Ability: | 1000 sets per month |

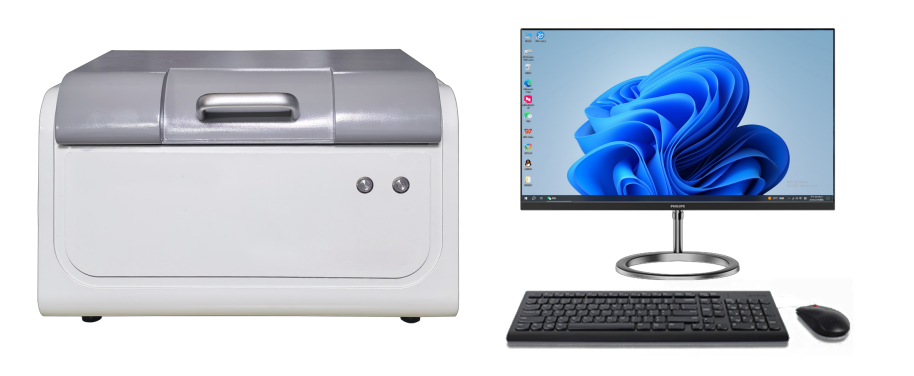

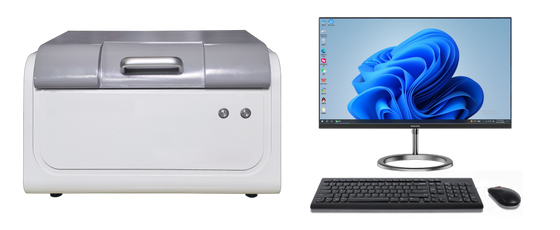

| Name: | High Precision XRF Multifunctional Spectrometer | X-Ray Fluorescence Analyzer For Elemental Analysis | Dimensions: | 500*400*350(mm) |
|---|---|---|---|
| Weight: | 40KG | Analyzable Element Range: | Sulfur (S) - Uranium (U) In The Periodic Table |
| Measuring Range: | 1ppm—99.99% | Measurement Time: | 60-300s(Software Automatic Adjustment) |
Introduction:
The multifunctional spectrometer uses high-precision, hig
on detectors under non-vacuum conditions, and applies a new generation of high-voltage power supplies and X-ray tubes to improve product reliability and utilize the high power of the new X-ray tube to improve the instrument's testing efficiency.
Application:
It is mainly used for the detection of elements such as lead (Pb), mercury (Hg), cadmium (Cd), total chromium (Cr) and total bromine (Br) in electronic and electrical products under regulatory control; for the detection of chlorine (Cl) and bromine (Br) in halogen-controlled products; for the analysis of alloy composition such as stainless steel and copper alloy; and for the analysis of common coating thickness.
Instrument Performance and Configuration:
| Host Technical Specifications | Computer Main Body Configuration and Printing Equipment | |
| Dimensions | 500*400*350(mm) | HP Computer A4 Format Color Inkjet Printer |
| Sample Chamber Size | 400*300*150(mm) | |
| Spot Size | φ6＃,φ4＃, φ3＃,φ2＃, φ0.5＃ | |
| Weight | 40KG | Software Function Configuration |
| Working Temperature | Indoor temperature:15-30℃ | ■ROHS ■Halogen-free □ELV □Plating thickness analysis □Alloy analysis □Precious metals □Toys Directive □Leather Testing □Battery Detection Note:■Standard Configuration □Not Configured |
| Relative Humidity of Working Environment | ≤70% (No Condensation) | |
| Analyzable element range | Sulfur (S) - Uranium (U) in the periodic table | |
| Function Description | RoHS in Electrical and Electronic Equipment+Halogen-free Directive: Control of Pb (lead), Cd (cadmium), Hg (mercury), total Cr (chromium), and total halogen Br (bromine), Cl (chlorine) elements | |
| Analyzed Sample Types | Solid, liquid, granular, powder, paste, etc. | |
| Measuring Range | 1ppm—99.99% | |
| Measurement Time | 60-300s(Software automatic adjustment) | |
| Warranty Period | One year (12 months), including three core components: X-ray tube, detector, high voltage power supply | |
| Detector | Imports from the United States:Sipin | |
| X-ray Tube | Maximum power:50W,Molybdenum (M0) target side window X-ray tube(Be) | System Standards and Others |
