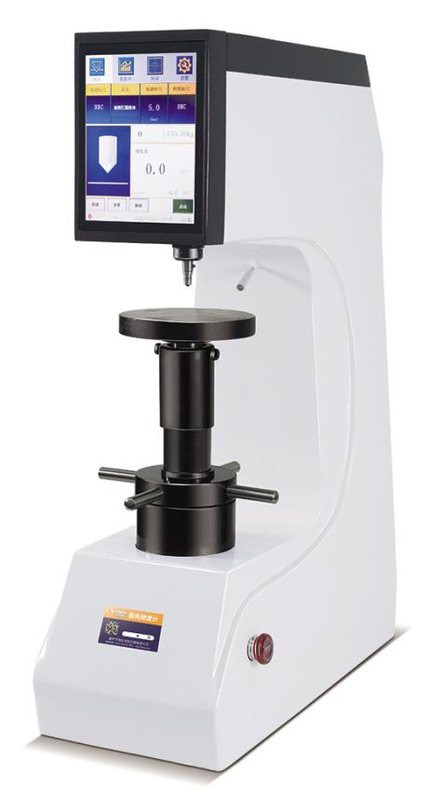

Touch Screen Digital Display Plastic Rockwell Hardness Tester

Features:

(1) The fuselage is made of high-quality cast iron and cast in one step, and is treated with automotive paint, with a round and beautiful appearance.

(2) With temperature measurement function, digital temperature measurement circuit, long-term work, stable and reliable.

(3) It has the function of automatic correction of cylindrical and spherical surfaces, and has corresponding prompts.

(4)The maximum and minimum hardness values can be set. When the test value exceeds the set range, an alarm sound will be issued.

(5) It has software hardness value correction function, which can directly correct the hardness value within a certain range.

(6) With database function, the test data can be automatically grouped and saved. Each group can save 10 data, and more than 2000 data can be saved.

(7) With hardness value curve display function, intuitively display the change of hardness value.

(8) The database can automatically record parameters such as scale, test force, hardness value, temperature, etc.

(9) The number of test points in each group can be freely set within the range of 1 to 10 points.

(10)The system automatically calculates the maximum, minimum, average and standard deviation of the hardness value of each group.

(11)Convenient control system, which can automatically convert the units of the entire hardness scale.

(12)Equipped with wireless Bluetooth printer, and can output data through RS232 and USB (optional) ports

(13)Equipped with an independent small lighting lamp, it is convenient for users to operate in poor light conditions

(14)Accuracy complies with GB/T230.2, ISO 6508-2 and American ASTM E18 standards.

Application:

(1)Determine the hardness of plastics, composite materials, various friction materials, soft metals, and non-metallic materials.

(2)Determine the hardness of plastics, hard rubber, friction materials, synthetic resins, aluminum-tin alloys, cardboard, and other materials.

Technical Parameter:
