Guangdong Hongtuo Instrument Technology Co.,Ltd
 |
| Place of Origin: | China |
| Brand Name: | Hontotest |
| Certification: | JB/T7409 |
| Model Number: | XHR-150 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD895.00-USD999.00 |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | about 3 days |
| Payment Terms: | D/P,T/T, D/A, L/C |
| Supply Ability: | 1000 sets per month |

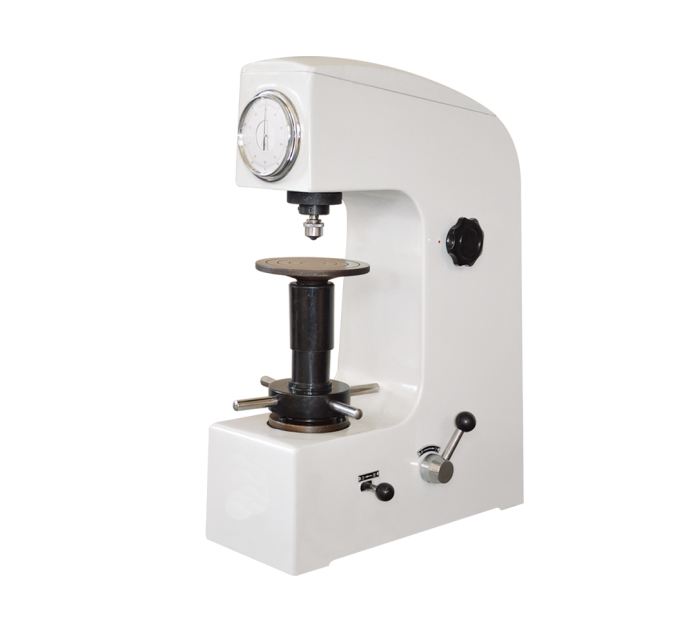

| Name: | Plastic Rockwell Hardness Tester For Material Testing | Measuring Range: | 70-100HRE, 50-115HRL, 50-115HRM, 50-115RR |
|---|---|---|---|
| Test Force: | 588.4, 980.7, 1417N (60, 100, 150kgf) | Hardness Resolution: | 0.5HR |
| Dimensions: | 466x238x630mm | Weight: | About 65kg |
Main Feature:
Lever loading, manual operation, accurate and durable, high measurement efficiency; the dial directly reads Rockwell Escale, HRL, HRM, HRR scale accuracy in line with JB/T7409.
Application:
Determination of the hardness of plastics, composite materials and friction materials and soft metal, non-metallic materials.
Main Technical Specifications:
Measuring range: 70-100Rockwell Escale, 50-115HRL, 50-115HRM, 50-115RR
Test force: 588.4, 980.7, 1417N (60, 100, 150kgf)
Maximum allowable height of the sample: 170mm;
Distance from the center of the indenter to the machine wall: 135mm;
Hardness resolution: 0.5HR;
Dimensions: 466x238x630mm;
Weight: about 65kg
Standard Configuration:
V-shaped table: 1
Large flat workbench: 1
Small flat workbench: 1
Steel ball indenter: Φ3.175mm Φ6.35mm Φ12.7mm
Standard plastic Rockwell hardness blocks: 4 blocks
