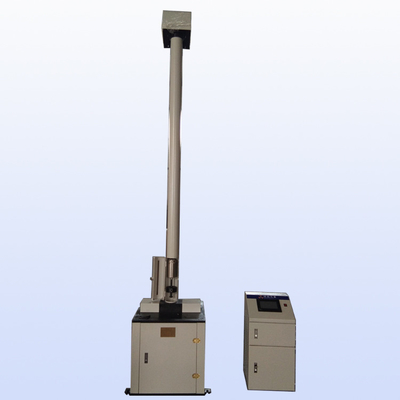

Plastic Ceramic Drop Weight Impact Testing Machine / Falling Weight Impact Tester

Plastic Ceramic Drop Weight Impact Testing Machine / Falling Weight Impact Tester

  • Plastic Ceramic Drop Weight Impact Testing Machine / Falling Weight Impact Tester
Plastic Ceramic Drop Weight Impact Testing Machine / Falling Weight Impact Tester
Product Details:
Place of Origin: Dongguan China
Brand Name: DahoMeter
Model Number: DH-14152
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: negotiable
Packaging Details: standard exporting wooden package
Delivery Time: 3 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month
Contact Now
Detailed Product Description
Plastic Glass Ceramic Drop Weight Impact Testing Machine Falling Weight Impact Tester: 10℃35℃ Drop Hammer Mass: 0.25kg16kg
Hammer: D25mm.D90mm Testing Before Delivery: Yes
After-sale Customer Service: Yes Product Name: Plastic Pipe Drop Hammer Impact Tester
High Light:

plastic testing instruments

,

plastic pipe testing equipment

Plastic Glass Ceramic Drop Weight Impact Testing Machine Falling Weight Impact Tester





Product introduction:



It is suitable for the determination of impact toughness of PVC-U, PVC-C pipe, PP pipe, PE pipe, plastic pipe for underground communication pipe, etc. It is an ideal test instrument for testing, production company, building materials industry and scientific research institution. The control part of the test machine adopts PLC, touch screen operation display, high automation, digital preset and display impact height, lift hammer and drop hammer; anti-secondary impact by adopting pneumatic transmission device, and the secondary impact capture rate is 100%. With personal safety automatic protection device (sample room door safety protection, anti-shock safety protection, etc.)



Standards:



It meets the technical requirements of the industry standard JB/T9389 ,and meets the test methods of GB/T14152, GB/T10002.1, GB/T5836.1, GB/T13664, GB/T16800, ISO4422, ISO3127, BSEN1411, BSEN744. .



Product features:



1.The working table can be adjusted, which has the function of automatically returning to zero position and automatically go up and down.

2.It has the anti secondary impact device, which can prevent the hammer’ secondary impact by sample elastic force after the first impact.

3.The lifting mechanism uses the induction brakes and chain transmission, which make lifting steady and reliable.

4.It use the impact PLC as the control element to control the height of lifting hammer, and automatically measure the height of the hammer head with accurate position.

5.The device can automatically locate, zero, lift hammer, grasp hammer after impact. The high standard of automatization makes it easy to operate.

6.It uses the polished rod as the guiding device, with little resistance when hammer falls.

7.It can add safety protection device to ensure the operation safety.



DH-14152 Pipe drop impact tester

Ambient temperature

10℃~35℃

Drop hammer mass

0.25kg~16kg(Customer optional)

Hammer

D25mm,D90mm(Customer optional)

Drop height

50mm~2000mm,Indication error does not exceed ± 2mm

Sample diameter

Φ10mm~Φ450mm

The deviation between impact center and fixture center

≤2mm

Pallet type

120°

Power supply

380VAC±10%(three-phase four-wire system)

Dimension

730mm×700mm×3600mm

Net weight

300kg
