Pneumatic Slicer Rubber Dumbbell Specimen Cutting Machine Base Plate 230X250mm

Pneumatic Slicer Rubber Dumbbell Specimen Cutting Machine Base Plate 230X250mm

  • Pneumatic Slicer Rubber Dumbbell Specimen Cutting Machine Base Plate 230X250mm
  • Pneumatic Slicer Rubber Dumbbell Specimen Cutting Machine Base Plate 230X250mm
Pneumatic Slicer Rubber Dumbbell Specimen Cutting Machine Base Plate 230X250mm
Product Details:
Place of Origin: Dongguan China
Brand Name: DahoMeter
Certification: ISO,SGS
Model Number: DH-PS-01
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: USD999 to USD1999
Packaging Details: standard exporting wooden package
Delivery Time: 3 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month
Contact Now
Detailed Product Description
Product Name: Pneumatic Slicer Load: 1000kg
Power: Electronic Warranty: 12 Months
Platen Diameter: Ф120 Mm Base Plate: 230X250mm
High Light:

plastic testing equipment

,

plastic pipe testing equipment

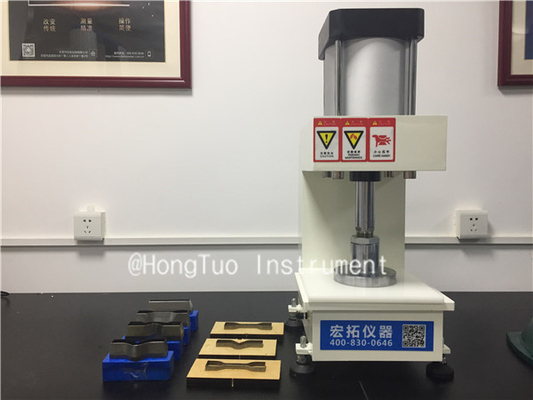

Pneumatic Slicer, Rubber Dumbbell Specimen Cutting Machine / Equipment / Device / Apparatus





Introduction:



The pneumatic slicer is mainly used for rubber cutting standard test pieces, and it is necessary to match the standard knife die.and connect the gas source above 4KG.



Specification:



1. Load: 1000KG.

2. Platen diameter: Ф120 mm.

3. Base plate: 230X250mm.

4. Effective height: 100mm.

5. Machine size: 280X330X430mm.

6. Machine weight: about 20 kg.



Operation:



1. Place the machine on a flat surface, adjust the four feet to make it stable.and put the cutting glue.

2. Open the ventilation source, adjust the rear oil-water separator valve switch, adjust the barometer to at least 4KG.

3. Put the PU glue, put the film on the glue, then put the knife mold, then hold the red button switch at the same time with both hands (for safety, both hands must be pressed at the same time), press the plate down on the knife mold, stay for a few seconds, so that the rubber is fully cut off, and at the same time let go, take out the test piece.

4. When you are finished, please turn off the air supply.
