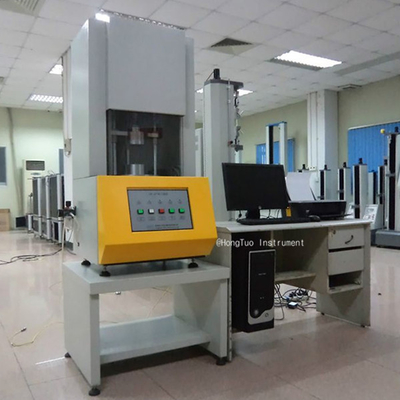

Durable Mooney Viscosity Meter / Tester , Viscosity Measurement Instrument

Durable Mooney Viscosity Meter / Tester , Viscosity Measurement Instrument

Durable Mooney Viscosity Meter / Tester , Viscosity Measurement Instrument

Product Details:

Place of Origin: Dongguan China
Brand Name: DahoMeter
Model Number: DH-MV-01

Payment & Shipping Terms:

Minimum Order Quantity: one set
Price: negotiable
Packaging Details: standard exporting package
Delivery Time: 3 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month
Contact Now
Detailed Product Description
Temperature Resolution: 0.1°C Torque Range: 0-100 Mooney
Calibration Accuracy: 100±0.5 Mooney Warranty: One Year
Technical Support: Yes Product Name: Mooney Viscosity Test Equipment



Mooney Viscosity Meter / Tester , Mooney Viscosity Measurement Instrument



Application

High Precision Labrotary Mooney Viscometer is used for testing reclaimed rubber or gross rubber viscosity, scorch and vulcanization index, etc. Computer control, data display, automatic calibration, it is a precision labrotary test instrument of rubber industries. Under the strong support of advanced PC machine WindowsXP, window 7 or other windows software, coupled with the excellentuser software and advanced hardware didn't prepare make the whole measurement become very convenient, quick, accurate nd pleasure.



Standard

GB/T1232, GB/T 1233, ISO667, ISO 289 ,ASTM D 1646, JIS K 6300 etc.



Functions

1. It used monolithic rotor control, which include: host, temperature measurement, temperature control, data acquisition and processing, sensors and electrical chains and other components. These measurements, temperature control circuit consists of a temperature control device, platinum resistance, heater composition, capable of automatic tracking power and ambient temperature changes, automatically correct PID parameters to achieve fast and accurate temperature control purposes. Data acquisition system and mechanical linkage to complete the rubber vulcanization process of force torch signal automatic detection, automatic real-time display of temperature and settings. After curing, automatic processing, automatic calculation, print vulcanization curve and process parameters. Show curing time, curing power Ju, also has a variety of audible alert.

2. It controlled by computer, the computer setting the parameters of the direct control of test parameters rheometer. Display real-vulcanization curve and temperature curve, store test results, different adjustable comparison of test results and in a different color.



Characters

1. Easy to use.

2. Temperature can be increased up to 185 within 7.5min, and recovery time when beginning, and recovery time when beginning test will be less 2min. And temperature fluctuation will be within 0.1.

3. All instruments adopted the way of PID to control temperature. The smallest size and weight in all of the same type instrument in the market;

4. The die was designed to international standard ISO.

5. With lower noise when working, ≤55dB.

6. It is following ISO 289 ,ASTM D 1646, JIS K 6300 .

7. Can variable Temperature unit “C, “ F Degree.

8.Use window XP program connect to machine & and can setting Mooney or scorch time and show Dynamically Mooney value or scorch time on the graph.



Specification



Items Specification
Range of temperature control From room temperature to 200°C
Temperature fluctuation in die ≤±0.1°C
Temperature display resolution 0.1°C
Rate of temperature increase Room temperature ~ 100°C 6min
Measurement range of torque 0-200 MV
Mooney test accuracy ±0.2MV
Torque resolution 0.1MV
Frequency of rotor 2±0.02r/min
Temperature PID Control +/- 0.1°C
Upper & Lower Separate plate temperature control
Power supply 220 V ,1 Phase, 50 Hz 680W
Dimensions 560×580×1160 mm
Weight About 300kg
