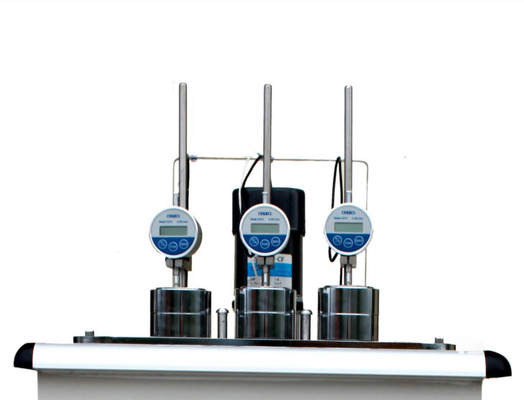

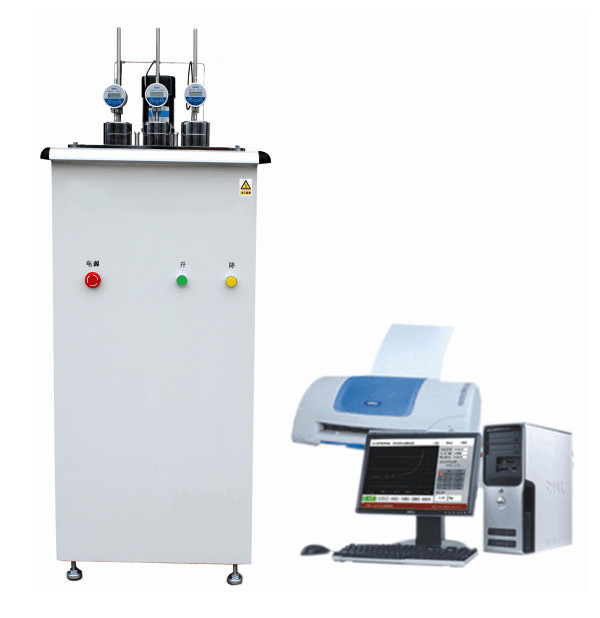

Plastic HDT Vicat Testing Machine , Digital HDT Heat Distortion Vicat Softening Point Apparatus

Plastic HDT Vicat Testing Machine , Digital HDT Heat Distortion Vicat Softening Point Apparatus

    • Plastic HDT Vicat Testing Machine , Digital HDT Heat Distortion Vicat Softening Point Apparatus
    • Plastic HDT Vicat Testing Machine , Digital HDT Heat Distortion Vicat Softening Point Apparatus
  • Plastic HDT Vicat Testing Machine , Digital HDT Heat Distortion Vicat Softening Point Apparatus

    Product Details:

    Place of Origin: Dongguan China
    Brand Name: DahoMeter
    Model Number: DH-300B

    Payment & Shipping Terms:

    Minimum Order Quantity: one set
    Price: negotiable
    Packaging Details: standard exporting wooden package
    Delivery Time: 3 days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300 sets per month
    Contact Now
    Detailed Product Description
    Product Name: HDT Vicat Tester Application: Plastic
    Number Of Test Stands: 3 Rate Of Temperature Increasing: 50℃/h,120℃/h
    Testing Before Delivery: Yes After-sale Customer Service: Yes



    Plastic HDT Vicat tTesting Machine , Digital HDT Heat Distortion Vicat Softening Point Tester , HDT Vicat Measurements





    Application:



    It is mainly used for the determination of heat distortion temperature and Vicat softening point temperature of non-metallic materials such as plastic, hard rubber, nylon, electrical insulating materials, long fiber reinforced composite materials, high strength thermosetting laminates. It is easy to operate and precise in control. It is a highly intelligent test instrument widely used in colleges and universities, research institutes and product quality supervision and inspection units.

    It adopts PC control, digital display dial gauge to measure deformation, real-time curve drawing, and the test data is processed twice directly on the PC. The test data can be imported into the OFFICE software for editing and layout.



    Standards:



    GB/T 1633,GB/T 1634,GB/T 8802,ISO 2507,ISO 75,ISO 306,ASTMD 1525,ASTMD 648



    Specification:



    1) Temperature control range: room temperature to 300 ° C

    2) Maximum temperature error: ±0.5°C

    3) Heating rate: 50 ° C / h, 120 ° C / h

    4) Temperature measurement point: 1

    5) Deformation measurement range: -0.1mm~1.1mm

    6) Maximum deformation error: ±0.01mm

    7) Using medium: methyl silicone oil or transformer oil;

    8) Sample support span: 64mm, 100mm

    9) Cooling method: natural cooling above 150 °C, water cooling below 150 °C or natural cooling;

    10) Has an upper limit temperature protection function;

    11) Number of test stands: 3

    12) The control mode adopts the single-chip computer and PC distributed control system;

    13) Instrument size: 490mm × 580mm × 1400mm

    14) Space required: 1m front and back, 0.6m left and right

    15) Power supply: 4500VA 220VAC 50HZ



    Configuration:



    1) 1 x Host one

    2) 3 x Sample holder

    3) 3 x Hot deformation heads

    4) 3 x Vicat pinion

    5) 1 x Brand desktop computer

    6) 1 x Color inkjet printer

    7) 1 x Power cord

    8) 1 x Signal line



    Name

    Speci

    fication

    A B C D E F G H I J K W
    Weight(g) 1000 900 500 200 100 50 20 10 5 2 40 60(Load bar)
    Pcs 12 3 3 6 3 3 6 3 3 6 3 3

    Note: Users need to have cooling water source and ventilation smoke exhaust equipment.
