Package Corrugated Carton Box Drop Impact Tester With Digital Displaying

Package Corrugated Carton Box Drop Impact Tester With Digital Displaying
Package Corrugated Carton Box Drop Impact Tester With Digital Displaying

Large Image :  Package Corrugated Carton Box Drop Impact Tester With Digital Displaying

Product Details:
Place of Origin: Dongguan,China
Brand Name: DahoMeter
Certification: ISO,SGS
Model Number: DH-DI-01
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: negotiable
Packaging Details: standard exporting wooden package
Delivery Time: 5 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month
Detailed Product Description
Dropping Error: ±10mm Drop Plane Error: <1°
The Highest Load: 80kg Testing Before Delivery: Yes
Power Supply: Electronic Product Name: Package Drop Impact Test Equipment
High Light:

paper testing instruments

,

paper bursting strength tester

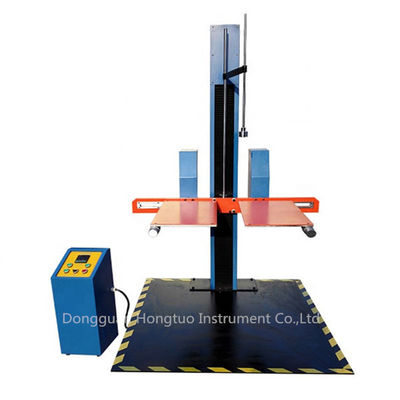

Package Corrugated Carton Box Drop Impact Tester with Digital Displaying







Equipment summary:



double wings corrugated box package drop testing machineused to test the damage and impact of packaged products by the free fall, including packing

containers Ling, angle, surface can be tested, it mainly used to assess withstand drops of product packaging

parts in the transport and loading, thereby improving and perfecting package design.



Applicable industry:



double wings corrugated box package drop testing machineapplicable to all factories and enterprises, technical supervision departments, the commodity inspection

authorities, research institutes and other departments for testing and researching.



Technical parameter:



Transmission mode: electric drive

Display mode: ruler, digital display height displayer (optional)

Fall mode: free fall.

Fall height: 300~1500mm

The maximum size of test piece: (L×W×H) 1000×800×1000

Drop panel area: (L×W) 1700×1400mm

Corbel size: 290×240×8mm

Dropping error: ±10mm

Drop plane error: <1°

Outline dimension: (L×W×H)1700×1400×2015mm

Control box size: (L × W × H) 350 × 350 × 1100mm

The highest load: 80Kg

The maximum size of the test object: W1000 × D1000 × H800 (mm)

Machine weight: 450kg

Power supply: 1∮ ,AC380V,50Hz



Package Corrugated Carton Box Drop Impact Tester With Digital Displaying 0
