Guangdong Hongtuo Instrument Technology Co.,Ltd
 |
| Place of Origin: | Dongguan,China |
| Brand Name: | DahoMeter |
| Certification: | ISO,SGS |
| Model Number: | DH-DI-01 |
| Minimum Order Quantity: | one set |
|---|---|
| Price: | negotiable |
| Packaging Details: | standard exporting wooden package |
| Delivery Time: | 5 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 sets per month |
| Dropping Error: | ±10mm | Drop Plane Error: | <1° |
|---|---|---|---|
| The Heighest Load: | 80kg | Quality Assurance: | Yes |
| Power Supply: | 380V | Product Name: | Package Drop Impact Test Machine |
| Highlight: | paper testing instruments,paper bursting strength tester |
||

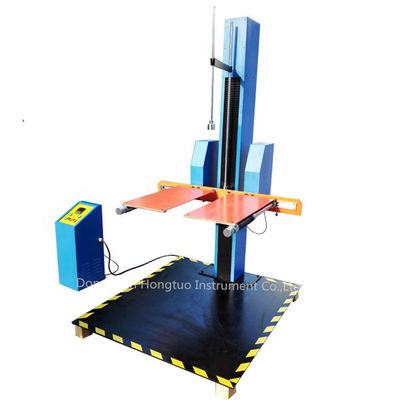

ISO2248 Free Fall Box Drop Test Machine with 10mm Drop Error
Application :
Double columns carton package drop tester is used to measure the dropping impact incidence when the package in using, transportation and decorating. Besides precision plane drop testing, it also can undertake edge and angle test to ensure the complete performance evaluation for the package.
Features :
1, Unique swing arm mechanism design, swing arm break away from acceleration more than 3 G/SEC.
2, With double column guide and hydraulic buffer absorb residual swing arm force, movements smooth, reliable, low noise.
3, Damping screw lifting mechanism, preventing drop institution unexpectedly glide.
4, Pneumatic automatic chain, preventing swing arm unusual break away.
5, Extensible support bracket and baseboard.
Specification:
| Drop height | 300~2200mm can adjustable |
| Wing size | 295*1000 mm 2 pieces |
| Distance between wings | possibility of manual adjustment from 10 to 250 mm |
| Outside Dimension | 1750*1450*2700mm |
| Weight | About 650kg |
| Test load | 0~80kg |
| Size bracket arm | 290*240*8mm |
| Drop error | ±10mm |
| Drop panel area size | 1700*1400*20mm |
| Drop bottom |
horizontal – no more than 2 mm per 1000 mm (smooth); flatness – no more than 2 mm (between the lower-upper point); deformation (rigidity) - no more than 0.1 mm with a load of 10 kg / 100mm2 |
| Drop bottom medium | steel plate |
| Fall and lift way | Electric fall and rise |
| Power | AC380V,50Hz |
| Drop method | face, edge, angle |
| Standard | ISO 2248 |
| Marking | All labels and equipment labeling duplicated in English |
