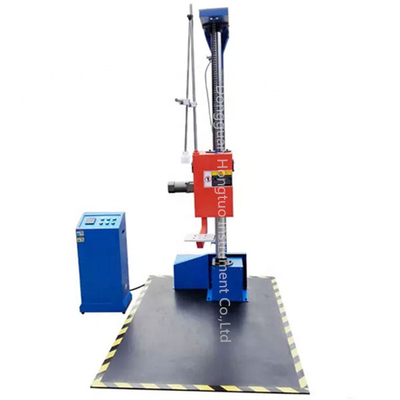

380V Paper Testing Equipment / Double Wing Package Simulated Drop Impact Test Machine

380V Paper Testing Equipment / Double Wing Package Simulated Drop Impact Test Machine
380V Paper Testing Equipment / Double Wing Package Simulated Drop Impact Test Machine

Large Image :  380V Paper Testing Equipment / Double Wing Package Simulated Drop Impact Test Machine

Product Details:
Place of Origin: Dongguan,China
Brand Name: DahoMeter
Certification: ISO,SGS
Model Number: DH-DI-01
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: negotiable
Packaging Details: standard exporting wooden package
Delivery Time: 5 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month
Detailed Product Description
Transmission Mode: Electric Drive Fall Mode: Free Fall
Fall Height: 300~1500mm Quality Assurance: Yes
Power Supply: 380V Product Name: Package Drop Impact Test Machine
High Light:

paper testing instruments

,

paper bursting strength tester

Double Wing Package Simulated Drop Impact Test Machine





Uses:



This tester can determine the ultimate dimension in drop testing and incline impact testing for product and package performance which uses as reference to improve the packing. Special fixtures are available to allow for corner and edge drops.



Design Standard:



GB4757.5-84 JISZ0202-87 ISO2248-1972(E) etc.



Characteristics:



1. Advanced structure ensure that bracket and specimen separate freely and specimen drop freely through bracket rapid downward motion then rotation movement. It delivers perfect test for specimen side, edge and corner.



2. It uses electric reset, electronically controlling falling, electric lifting, which makes it is easy to operate.



3. High Accuracy, direct display



4. It is steady when it is dropping and lifting





Specification:



Drop height 300~2200mm can adjustable
Wing size 295*1000 mm 2 pieces
Distance between wings possibility of manual adjustment from 10 to 250 mm
Outside Dimension 1750*1450*2700mm
Weight About 650kg
Test load 0~80kg
Size bracket arm 290*240*8mm
Drop error ±10mm
Drop panel area size 1700*1400*20mm
Drop bottom

horizontal – no more than 2 mm per 1000 mm (smooth);

flatness – no more than 2 mm (between the lower-upper point);

deformation (rigidity) - no more than 0.1 mm with a load of 10 kg / 100mm2

Drop bottom medium steel plate
Fall and lift way Electric fall and rise
Power AC380V,50Hz
Drop method face, edge, angle
Standard ISO 2248
Marking All labels and equipment labeling duplicated in English
