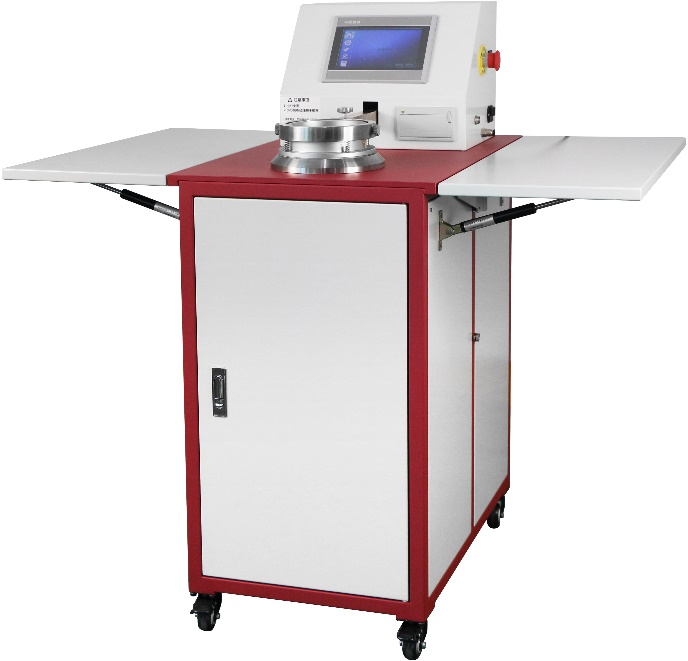

Sponge Air Permeability Tester | Foam Air Permeability Testing Machine for Flexible Foam Materials

Application:

Used for measuring the air permeability of soft foam polymer materials, sponge materials, etc.

Features:

1. Touch screen control, English menus, human-computer dialogue mode, easy to operate.

2. Built-in thermal printer, convenient for quick printing of test results on site.

3. Professional computer analysis software can realize two-way operation with the computer, and can perform report statistics, data analysis, etc.

4. Adopt high-precision differential pressure sensor, high test accuracy and good repeatability.

5. The nozzle can be replaced according to the measurement range prompt of each nozzle, and the sample can be automatically fixed, with higher accuracy and efficiency.

6. The test parameters are directly set digitally, and the parameter unit can be set as needed.

7. The flow cylinder is welded with seamless steel pipes, which is durable and has door cover and door lock devices. While ensuring the convenience of replacing nozzles, it also ensures good air tightness.

8. The sample fixing device is controlled by the cylinder, automatically clamps the sample, and ensures the tightness of the sample fixture.

Technical Parameters:

1. Test pressure: 1~4000Pa (nozzle), 1~1000Pa (sample), 1~4000Pa (sample) can be customized

2. Measurable air permeability: 1~9999mm/s

3. Measurement error: ≤±2%

4. Measurable fabric thickness: ≤12mm

5. Air suction volume adjustment: dynamic adjustment by data feedback

6. Test area fixture: 25cm2

7. Nozzle parameters:

8. Data processing capacity: ≤20×30 tests

9. Printer: Thermal micro printer

10. Data port: RS232 (host computer communication)

11. Dimensions: 1080×670×1080mm

12. Weight: 100kg

13. Power supply: AC220V 50Hz 1200W
