Guangdong Hongtuo Instrument Technology Co.,Ltd
 |
| Place of Origin: | China |
| Brand Name: | Dahometer |
| Certification: | ISO-7214, JIS-K6767, K6382 |
| Model Number: | DH-CF |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD2,276.00 |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | about 3 days |
| Payment Terms: | D/P,T/T, D/A, L/C |
| Supply Ability: | 1000 sets per month |

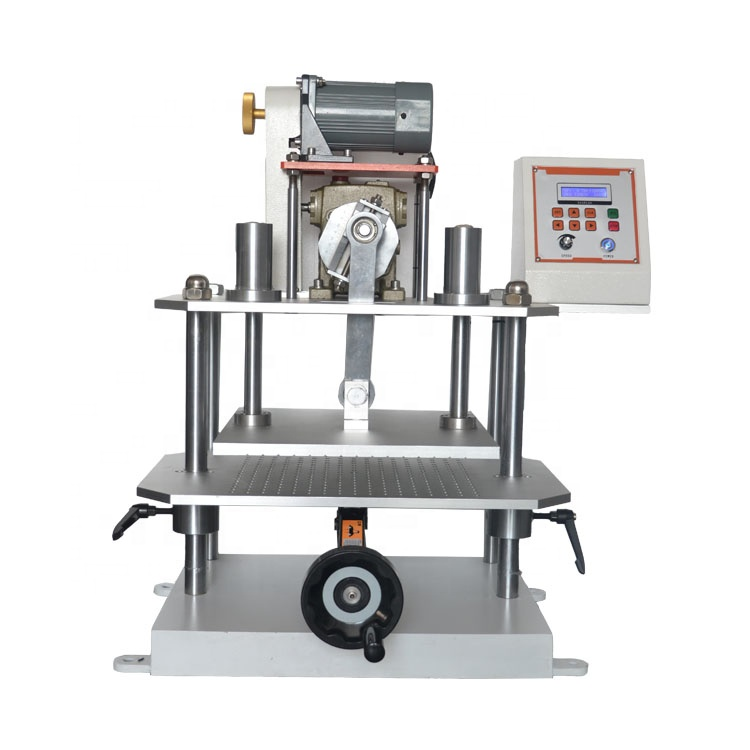

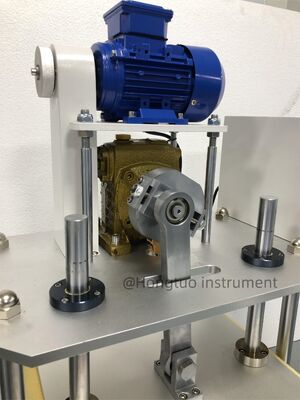

| Name: | Foam Repeated Compression Testing Machine | Compression Fatigue Tester For Flexible Foam Materials | Compression Stroke: | 0~50mm |
|---|---|---|---|
| Compression Rate: | 60cpm | Platen Spacing: | 200mm |
| Motor: | 1/3HP | Weight: | 102kg |
Application:
After accurately measure the thickness of the test piece, then place it in the compression plate of the testing machine, compressing the test piece 60 times at a rate of 60 times per minute, compressing the test piece by 50%, the reciprocating compression is up to 80,000 times, and after 30 minutes at normal temperature, the thickness is measured to convert the compression deformation rate.
Technical Parameters:
Compression stroke: 0~50mm
Compression rate: 60cpm
Platen spacing: 200mm
Test piece size: 200 × 200mm
Platen area: 30×30cm
Upper pressure plate: V-type exhaust groove distance: 19 × 19mm
Lower pressure plate: 289 venting holes, hole spacing: 19mm
Motor: 1/3HP
Counter: LCD, 0~999999
Volume: 60 × 40 × 75cm
Weight: 102kg
Power supply: 1∮AC220, 5A
