Guangdong Hongtuo Instrument Technology Co.,Ltd
 |
| Place of Origin: | China |
| Brand Name: | Dahometer |
| Certification: | EN-344 |
| Model Number: | HT-344 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD1,399.00-USD1,879.00 |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | about 3 days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1000 sets per month |

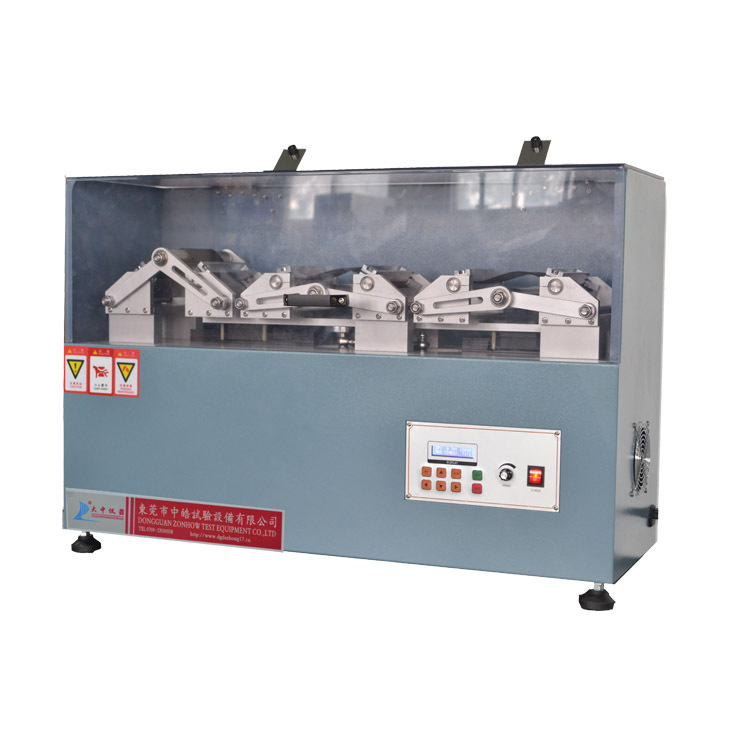

| Name: | EN Standard Sole Bending Testing Machine For Footwear | Bending Angle: | 90 ° |
|---|---|---|---|
| Testing At The Same Time: | 3 Soles | Counter: | LED, 0 ~ 99999999 |
| Weight: | 68kg | Power: | 1∮, AV220V, 3A |
Application:

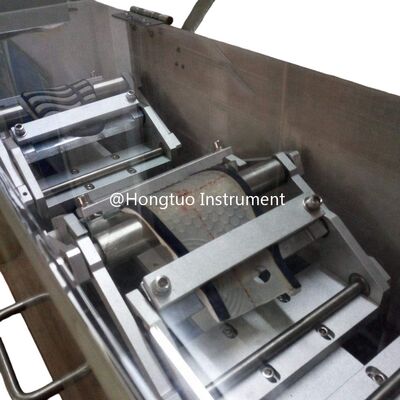

The sole bending tester measures the bending resistance of the sole material under the action of continuous bending. Before the test, a number of holes were punctured in the place where the sole was most bent. The two ends of the sole test piece were fixed between the clamps. During the test, one end of the clamp was fixed and one end was movable. After a certain number of tests, remove the test piece to check the bending change.
Standards:
EN-344
Specification:
Bending angle: 90 °
Round shaft diameter: φ30mm
Bending speed: 0 ~ 135 revolutions / minute
Fixture width: 144mm
Testing at the same time: 3 soles
Counter: LED, 0 ~ 99999999
Horsepower: DC, 375W
Volume: 85 × 31 × 65cm
Weight: 68kg
Power source: 1∮, AV220V, 3A
