Guangdong Hongtuo Instrument Technology Co.,Ltd
 |
| Place of Origin: | China |
| Brand Name: | Dahometer |
| Certification: | ISO 17232 ，ISO 20344，DIN 53351，ISO 5402-1， |
| Model Number: | DH-LF |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD1,577.00 |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | about 3 days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1000 sets per month |

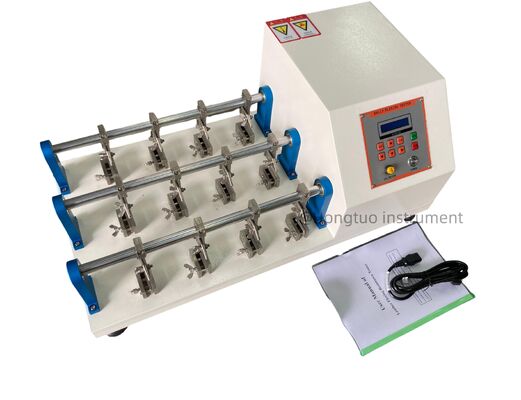

| Name: | Leather Flex Testing Machine For Shoe Sole Flexing Durability Test | Speed: | (100±5) Cpm |
|---|---|---|---|
| Fixture: | 12 Groups | Bending Angle: | 22.5° |
| Weight: | About 60kg | Power: | AC220V, 50Hz |
Summary:
Leather scratch resistance tester is used to test the folding performance of various leathers and fabrics. Materials need to be nipped both inside and outside, twist and turn over and over again until a certain times, and cBally Leather Flexing Tester for Flexometer Test. The machine is mainly used in clothing, shoes, bags, etc.
Standards:
ISO 17232 (IULTCS/IUP 38): Leather -- Physical and mechanical tests -- Determination of heat resistance of patent leather
ISO 20344: Personal protective equipment -- Test methods for footwear
DIN 53351: Testing Of Artificial Leather And Similar Shut Materials - Behaviour At Permanent Folding
ISO 5402-1: specifies a method for determining the wet or dry flex resistance of leather and finishes applied to leather.
BS EN 344-1: Safety, protective and occupational footwear for professional use - Requirements and test methodsJIS K 6545: Testing method for flexing QB/T 2714: Leather -- Physical and mechanical tests -- determination of flex resistance EN 13512: Footwear - Test Methods For Uppers And Lining - Flex Resistance ETC...
Application:
Used to test leather performance in shoes, clothing, luggage handbag industry, research laboratories; commodity inspection, arbitration and technical supervision departments.
Technical characteristics:
| Product name | Electronic Leather Scratch Resistance Testing Machine |
| Speed | (100±5) cpm |
| Fixture | 12 groups |
| Specimen Size | (70*45) mm |
| Bending Angle | 22.5° |
| Weight | About 60kg |
| Size | (52*64*40) cm |
| Power | AC220V, 50Hz |
