| Place of Origin: | China |
| Brand Name: | Hontotest |
| Certification: | AS/NZS2088：2000 ASTM-F833 and CNS 6263-11，BSL-1996、EN1888：2003 |
| Model Number: | HT-SD |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD4,457.00 |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | about 3 days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1000 sets per month |

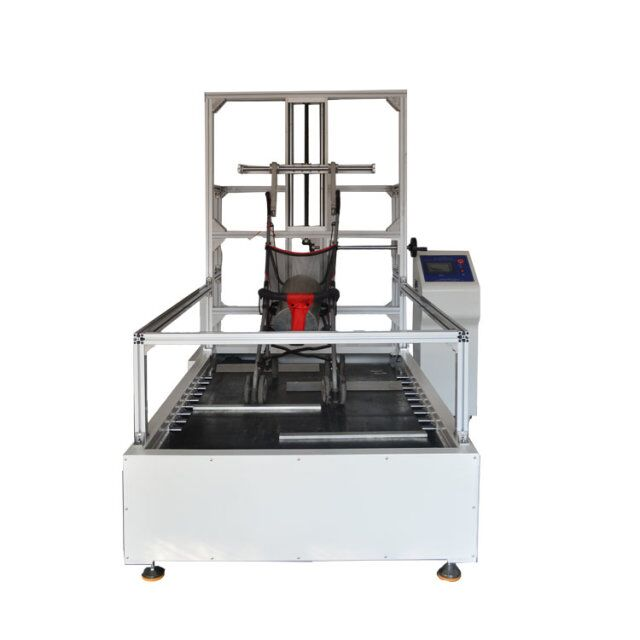

| Name: | Baby Stroller Dynamic Durability Testing Machine For Endurance Test | Test Work: | Single-seat Vehicle Body |
|---|---|---|---|
| Test Speed: | 5km/h±0.1km/h (adjustable) | Test Count: | 0-99999999 |
| Machine Power Supply: | AC380V | Impact Block Shape: | Trapezoidal, Semi-arc Or Specified |
The test method: place the model baby in the carriage, fix the carriage on the test bench, and adjust the conveyor belt speed to about 1.4±0.1km/h. After 64 hours of continuous testing, visually check whether the carriage is damaged. The operation will automatically stop when the set number of times is reached. The machine is equipped with an electric eye safety device to prevent the baby carriage from losing control and damaging the test machine due to the breakage of the handle and rubber ring. This machine is suitable for dynamic durability testing of the bottom wheels and body of a hand-pushing baby carriage when it is moving in simulated road conditions.
1. Test work: Single-seat vehicle body
2. Test speed: 5km/h±0.1km/h (adjustable)
3. Drive mode: Roller-driven canvas rubber conveyor belt and reinforced with rollers to drive special aluminum alloy conveyor belt
4. Drive horsepower: AC380V*3HP
6. Effective width: Max1000mm
7. Test count: 0-99999999
8. Load: MAX50 pounds
9. Machine power supply: AC380V
10. Impact block shape: trapezoidal, semi-arc or specified
11. Overall dimensions: 230x120x200cm
