Place of Origin: | Dongguan,China |
Brand Name: | DahoMeter |
Certification: | ISO,SGS |
Model Number: | DH-CE-01 |
Minimum Order Quantity: | one set |
---|---|
Price: | negotiable |
Packaging Details: | standard exporting wooden package |
Delivery Time: | 5 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 300 sets per month |
Usage: | Carton Edge Crush Tester | Size: | 360mm × 330mm × 550mm |
---|---|---|---|
The Standard Pressure Plate: | ¢100mm | Degree Of Parallelism For The Upper And Lower Pressure Plates: | <0.05mm |
Shipping Method: | Fedex,TNT,DHL Or UPS | Stock: | Yes |
Highlight: | paper testing instruments,paper bursting strength tester |

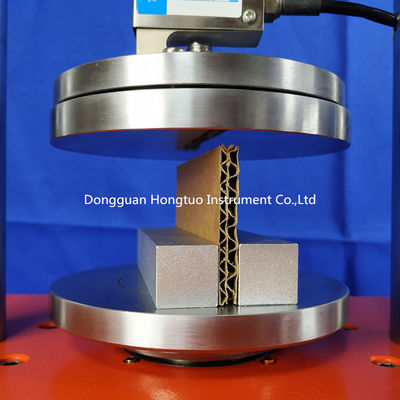

Best Quality Ring Crush And Edge Crush Tester/ ECT or RCT Testing Machine , Paper ETC Edge Crush Tester
Application :
This machine can be matched with various materials to do comprehensive testing, in terms of paper packaging material, a variety of test paper quality, i.e. the ring pressure (RCT), pressure (FCT), side pressure (ECT), adhesive (PAT) and general compression (CMT) and other 5 kinds of test, is a combination of a number of functions in the test one of the equipment.
Technical Specifications:
Parameter item | Technical index |
Measuring range | (0~3000N)(0-30000N/M) |
Resolution
|
1N |
Accuracy of the indicating value | Error of indication±1%,variation of indication≤1% |
Test speed | (12.5±2.5)mm/min |
Degree of parallelism for the upper and lower pressure plates | <0.05mm |
The standard pressure plate | ¢100mm |
The maximum distance between upper and lower pressure plates. | about 70mm |
Displaying mode | LCD display in English |
Printing function |
High-speed thermal printer(printing content: serial number,the maximum value,the minimum value,peak value ,average value,etc) |
Working power supply | AC220V 50Hz |
Machine weight | about 45kg |
Size | 360mm × 330mm × 550mm |
Design standards | CNS2956,JISP8126,TAPPIT472,GB/T2679.6-1996,GB/T6548-1998,GB/T6544-2008 |
Optional Accessories(Purchase Separately)
lRCT Central Panel
Testing ring crush strength of paper and cardboard 1set
lRCT Sample Cutter
Sampling ring crush strength of paper and cardboard 1set
lECT Sample Holder
Testing edgewise crush strength measurement of paper and cardboard 1set
lECT Sample Cutter Sampling edgewise crush strength and Bond
strength of paper and cardboard 1set
lFCT Sample Cutter
Sampling flat strength of paper and cardboard 1set
lPAT Accessories
Testing pin adhesion of paper and cardboard 1set
lRS232 interface and computer software 1set
Standards
üGB/T 2679.8 GB/T 6546 GB/T 2679.6 GB/T 6548 GB/T 22874
üISO 12192 ISO 2493 ISO 7263 ISO 3035 ISO 3037
