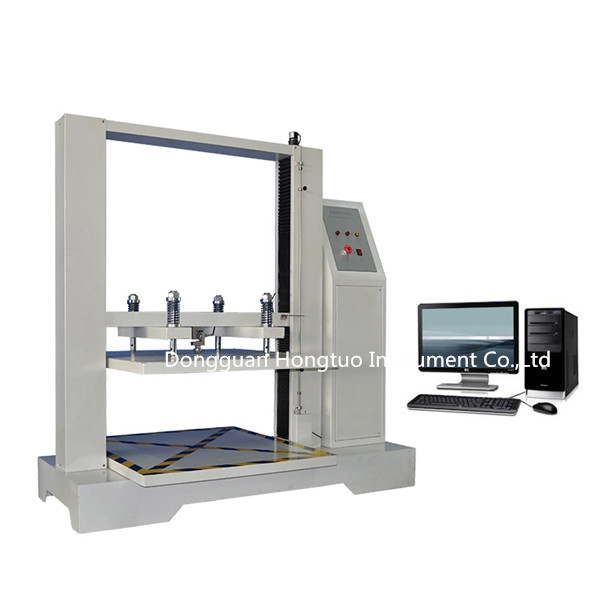

Carton Compression Testing Equipment For Lab





Introductions: Corrugated Carton Testing equipment is used for measuring the pressure strength of boxes,cartons, packaging containers, etc. for inspecting the pressure-resistance and strike-endurance of packing materials during transportation or carry. Also it can do hold pressure stacking test ,It's equipped with 4 precise Load Cells for detection. The testing results are displayed by computer.The main technical parameters Corrugated Box Compression Tester

Application:
Corrugated board boxes and Cartons, Plastic Packaging, Wooden box.

Features:
1) Strength test:
Strength test which belongs to a destructive test is mainly used to measure the deformation when the
Sample is loaded with maximum pressure or crushing strength.
2) Constant Value Test:
There are two parameters which are to be set in the constant value test: Load force value and
Deformation value. The user can set one or both of them according to the practical requirement; The
Measurement is complete when any parameter reaches the set value.
3) Stacking Test:
Stacking Test is used to check up that whether the sample can endure a constant pressure in a given
Time period. Set up two parameters: Compressive strength and testing time (hour). When the test
Starts, the system will check the current pressure at any moment to ensure the set value; The
Measure is complete when the test time is expired or the deformation value exceeds the set one
Within testing time.
4) The overall system is in good parallelism, stationarity and high return speed.

Design standards: TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642
