Guangdong Hongtuo Instrument Technology Co.,Ltd
 |
| Place of Origin: | China |
| Brand Name: | Dahometer |
| Certification: | ISO,SGS |
| Model Number: | DH-SV-01 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 5 days |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 sets per months |
| Name: | High Load Simulating Transportation Package Vibration Test Machine | Features:: | The Digital Screen Dispaly The Vibration Frenquency |
|---|---|---|---|
| Standards:: | EN ANSI, UL Etc | Vibration Mode: | Rotary (horse Race) |
| Vibration Frequency: | 100~300rpm | Table Size(mm): | 1200 × 1000 × 650 |
| Highlight: | EN ANSI Vibration Test Machine,AC220V Vibration Test Machine,Simulating Transportation Rotary Vibration Shaker Machine |
||

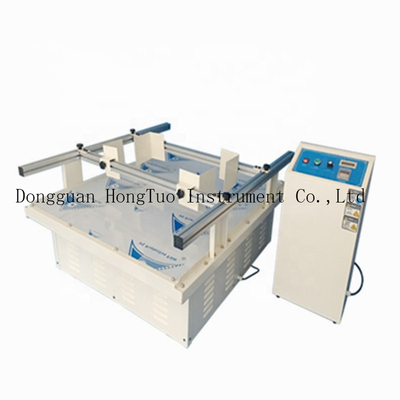

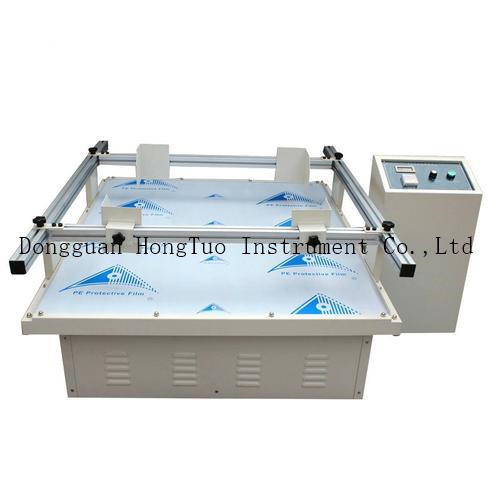

High Load Simulating Transportation Package Vibration Test Machine
Application:
Transportation vibration testing equipment , which simulates a transporation environment, is applicable to the vibration test of toys, electronics, furnitures, gifts, ceramics, communications, packagings, equipment, computer and automobile components, etc.
Features:
1. competitive price
2. the digital screen dispaly the vibration frenquency
3. use rail track for the installation of the test sample, oprate easily and safely
4. the pedestal of the machine applies heavy style channel with vibration attenuation pad, convenient, stable,no need to install the land-end screw.
5. Silent, can be used in office buildings, laboratories
Standards:
EN ANSI, UL, ASTM, ISTA international transportation standards
※ Synchronous noise suppression belt drive, the noise is extremely low
※ The sample is clamped by guide rail, which is convenient and safe to operate
※ The base of the machine adopts heavy-duty channel steel with vibration-damping rubber pad, which is easy to install and runs smoothly, without the need to install anchor screws
※ DC motor speed regulation, smooth operation and strong load capacity
※ Rotary vibration (commonly known as horse race) conforms to European and American transportation standards
Specification:
| Vibration mode | Rotary (horse race) |
| Vibration frequency | 100~300rpm |
| Simulated speed | 25-80km/h |
| Maximum load | 100kg |
| amplitude | 25.4mm |
| Effective work surface size | 1200x1000mm |
| Motor Power | 1HP (0.75kw) |
| Table size | 1200 × 1000 × 650 (mm) |
| Timer | 9999M |
| Machine weight | 180kg |
| Display frequency accuracy | 1rpm |
| power supply | AC220V 10A |
