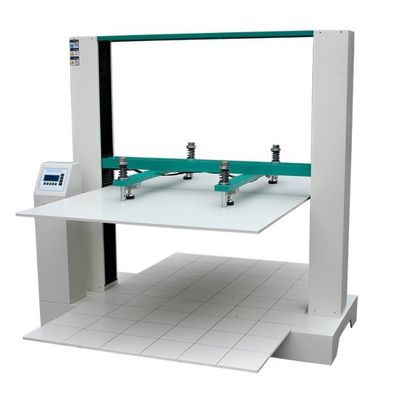

Electronic Carton Compression Tester Paper Carton Box Compression Testing Equipments

Product Details:

Place of Origin:	China
Brand Name:	Dahometer
Certification:	ISO,SGS
Model Number:	DH-CC-01

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Standard export wooden case
Delivery Time:	about 7 days
Payment Terms:	D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 sets per months

Contact Now

Detailed Product Description

Name:	Electronic Carton Compression Tester Paper Carton Box Compression Testing Equipments	Features::	Can Display Test Value And Maximum Value, With Printing Function
Capacity:	500kg	Accuracy Level:	1 Class
Control Method:	Microcomputer Control (computer Operating System Is Optional)	Display Method:	Electronic LCD Display (or Computer Display)

Electronic Carton Compression Tester Paper Carton Box Compression Testing Equipments

1.LCD large blue backlit liquid crystal display

2. Can display test value and maximum value, with printing function;

3. Constant force and timing test, after the test is completed, automatically reset;

4. Overload shutdown, emergency stop button, automatic shutdown when the specimen is damaged, automatic shutdown when the upper and lower limits are set; overload protection, limit element protection device.

5. Control mode: dual-position (computer host and microcomputer LCD monitor can be tested separately)

6. Display mode: electronic LCD display and Computer display

Detailed equipment parameters:

Capacity	500kg
Accuracy level	1 class
Control method	Microcomputer control (computer operating system is optional)
Display method	Electronic LCD display (or computer display)
Unit conversion	kgf,gf ,N,kN,lbf
Stress unit conversion	MPa,kPa,kgf/cm2,lbf/in2
Displacement unit	mm, cm, in
Force resolution	1/100000
Display resolution	0.001N
Machine stroke	600 mm
Platen size	600*600 mm
Test speed	5mm～100mm/min can input speed arbitrarily
Software function	English language
Stop mode	Overload shutdown, emergency stop button,specimen damage automatic shutdown, upper and lower limits automatic shutdown
safety devices	Overload protection, limit element protection device
Machine power	AC inverter motor drive controller
Mechanical system	High precision ball screw
Power supply	AC220V/50HZ~60HZ 4A
Machine weight	Around 350KG
features	Percent break value can be set, automatic stop, can enter the menu to choose 4 different speeds, 20 results, you can view the average value of all test results and single results
