Guangdong Hongtuo Instrument Technology Co.,Ltd
 |
| Place of Origin: | Dongguan,China |
| Brand Name: | DahoMeter |
| Certification: | ISO,SGS |
| Model Number: | DH-DI-01 |
| Minimum Order Quantity: | one set |
|---|---|
| Price: | negotiable |
| Packaging Details: | standard exporting wooden package |
| Delivery Time: | 5 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 sets per month |
| Transmission Mode: | Electric Drive | Fall Mode: | Free Fall |
|---|---|---|---|
| Fall Height: | 300~1500mm | Product Name: | Single-Arm Digital Drop Lab Package Testing Equipment Drop Package Testing Machine |
| Control Mode: | Electric | Package: | Standard Wooden Case |

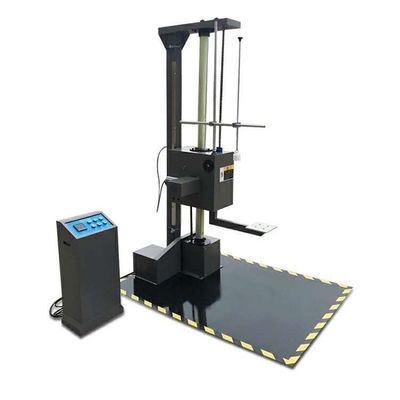

Single-Arm Digital Drop Lab Package Testing Equipment Drop Package Testing Machine
It is designed for testing various products after packaging in the handling or transportation process, which is corrupted and leads to the internal damage of products. The machine can be used for predictive testing to find the best solutions to minimize losses in transit and to assess the impact strength of electronic components when they are dropped during transportation. Equipment for measuring the reliability of the ring-sides, angles and surfaces of packaging containers.
Design Standard:
GB4757.5-84 JISZ0202-87 ISO2248-1972(E) etc.
Characteristics:
1. Advanced structure ensure that bracket and specimen separate freely and specimen drop freely through bracket rapid downward motion then rotation movement. It delivers perfect test for specimen side, edge and corner.
2. It uses electric reset, electronically controlling falling, electric lifting, which makes it is easy to operate.
3. High Accuracy, direct display
4. It is steady when it is dropping and lifting
Specification:
| Drop height | 300~2200mm can adjustable |
| Wing size | 295*1000 mm 2 pieces |
| Distance between wings | possibility of manual adjustment from 10 to 250 mm |
| Outside Dimension | 1750*1450*2700mm |
| Weight | About 650kg |
| Test load | 0~80kg |
| Size bracket arm | 290*240*8mm |
| Drop error | ±10mm |
| Drop panel area size | 1700*1400*20mm |
| Drop bottom |
horizontal – no more than 2 mm per 1000 mm (smooth); flatness – no more than 2 mm (between the lower-upper point); deformation (rigidity) - no more than 0.1 mm with a load of 10 kg / 100mm2 |
| Drop bottom medium | steel plate |
| Fall and lift way | Electric fall and rise |
| Power | AC380V,50Hz |
| Drop method | face, edge, angle |
| Standard | ISO 2248 |
| Marking | All labels and equipment labeling duplicated in English |
